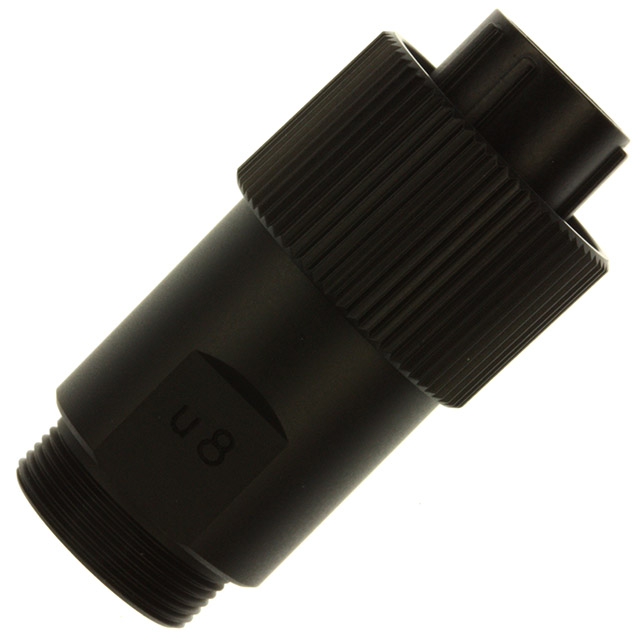

JR13WP-5S(71)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JR13WP-5S(71) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JR13WP-5S(71) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JR13WP-5S(71) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN PLUG FMALE 5POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.60 | $6.861 | $6.573 | $6.162 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JR13WP-5S(71) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN PLUG FMALE 5POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6148 pcs | Data sheet | JR-W Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 100VAC, 140VDC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | 13 |
| Shell Material | Aluminum Alloy | Shell Finish | Black Chromium |
| Series | JR-W | Packaging | Bulk |
| Other Names | *JR13WP-5S(71) HR1320 JR13WP5S71 |
Orientation | Keyed |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 5 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Phenol Formaldehyde (PF) |
| Ingress Protection | IP67/68 - Dust Tight, Waterproof | Features | Backshell, Coupling Nut |
| Fastening Type | Threaded | Detailed Description | 5 Position Circular Connector Plug, Female Sockets Solder Cup Silver |
| Current Rating | 5A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) | Contact Finish - Mating | Silver |
| Connector Type | Plug, Female Sockets | Color | Black |
| Cable Opening | - | Backshell Material, Plating | Brass, Black Chrome |
| Applications | Automotive, Industrial, Telecommunications |
