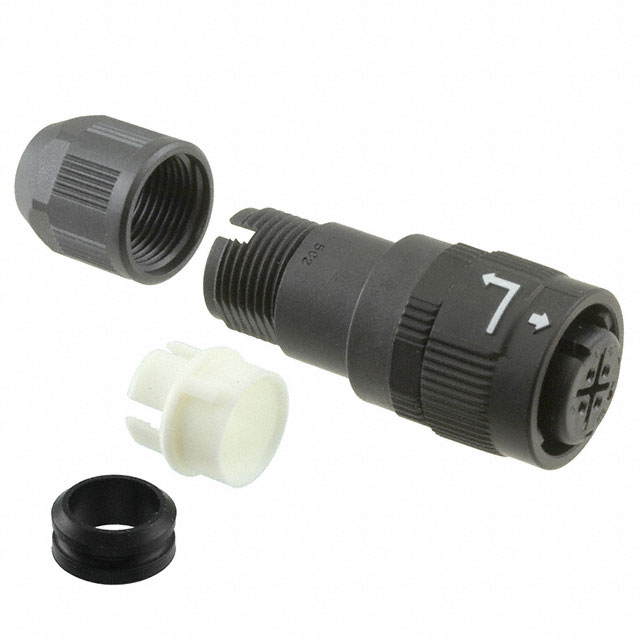

HR34B-12WPD-4S-X
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HR34B-12WPD-4S-X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HR34B-12WPD-4S-X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HR34B-12WPD-4S-X |
|---|---|
| Manufacturer | Hirose |
| Description | CONN PLUG FMALE 4POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.619 | $6.146 | $5.515 | $5.358 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HR34B-12WPD-4S-X | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN PLUG FMALE 4POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5696 pcs | Data sheet | HR34B Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 12 |
| Shell Material | Zinc Alloy | Shell Finish | Chrome |
| Series | HR34B | Packaging | Tray |
| Other Names | 134-0023-1-00 H124074 HR34B-12WPD-4S-X-ND |
Orientation | X |
| Operating Temperature | -25°C ~ 125°C | Number of Positions | 4 (Power) |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyphenylene Sulfide (PPS) | Ingress Protection | IP67F/68F - Dust Tight, Oil Resistant, Waterproof |
| Features | Backshell, Coupling Nut, Strain Relief | Fastening Type | Bayonet Lock |
| Detailed Description | 4 (Power) Position Circular Connector Plug, Female Sockets Solder Cup Silver | Current Rating | 5A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Contact Finish - Mating | Silver | Connector Type | Plug, Female Sockets |
| Color | Black | Cable Opening | 0.224" ~ 0.256" (5.70mm ~ 6.50mm) |
| Backshell Material, Plating | Polyamide (PA), Nylon | Applications | Telecommunications |
