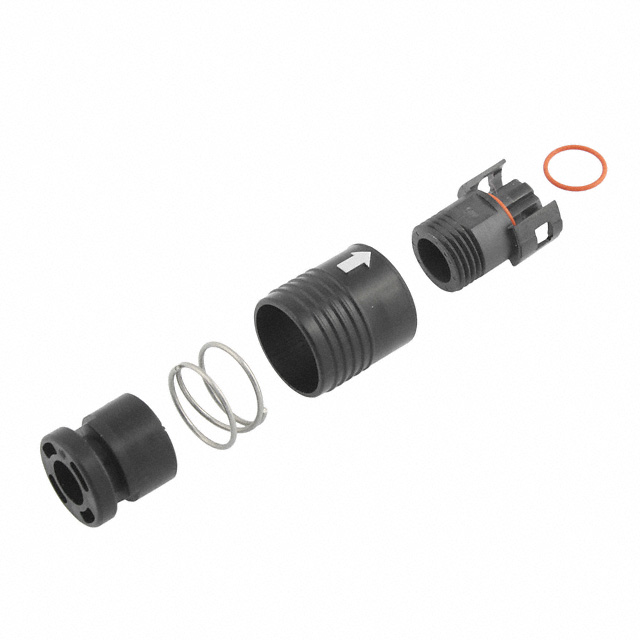

HR30-7PB-12SC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HR30-7PB-12SC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HR30-7PB-12SC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HR30-7PB-12SC |
|---|---|
| Manufacturer | Hirose Electric Co Ltd |
| Description | CONN PLUG 12POS FEMALE CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $2.46 | $2.359 | $2.051 | $1.949 | $1.743 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $1.641 | $1.436 | $1.364 | $1.333 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HR30-7PB-12SC | Manufacturer | Hirose Electric Co Ltd |
|---|---|---|---|
| Description | CONN PLUG 12POS FEMALE CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22630 pcs | Data sheet | HR30 Overmold Wiring ProcedureHR30 Series, OvermoldHR30-7PB-12SC Drawing |
| Category | Connectors, Interconnects | Wire Gauge or Range - AWG | - |
| Usage | Unshielded | Type Attributes | IP67/68 - Dust Tight, Waterproof |
| Type | For Female Sockets | Stacking Direction | Crimp |
| Shield Termination | Circular | Shell Material, Finish | - |
| Shell Finish | Polyphenylene Sulfide (PPS) | Series | HR30 |
| RoHS Status | Tray | Plug/Mating Plug Diameter | Black |
| Other Names | HR1958 HR307PB12SC |
Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 12 | Note | Contacts Not Included |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Manufacturer Part Number | HR30-7PB-12SC | Large Diameter Supplied | 7 |
| Insert Material | - | Includes | 4 pcs - 2 pc Connector, 1 Backshell, 1 Spring |
| Features | Backshell, Strain Relief | Expanded Description | 12 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Strain Relief |
| Description | CONN PLUG 12POS FEMALE CRIMP | Current - Max/Contact | Push-Pull |
| Coupling Nut Material, Plating | - | Coupling Nut Diameter | - |
| Contact Shape | Polyphenylene Sulfide (PPS) | Contact Material | Keyed |
| Connector Type | Plug Housing | Body Material | - |
