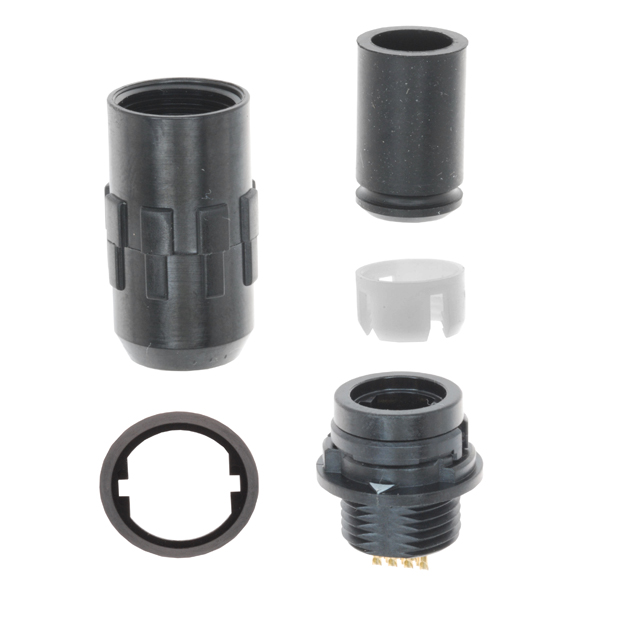

HR30-7J-12P(71)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HR30-7J-12P(71) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HR30-7J-12P(71) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HR30-7J-12P(71) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN JACK MALE 12POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $3.475 | $3.325 | $3.023 | $2.872 | $2.796 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | HR30-7J-12P(71) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN JACK MALE 12POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10843 pcs | Data sheet | HR30-7J-12P(71) DrawingHR30-7J-12P(71) SpecHR30 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 30VAC, 42VDC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | 7 |
| Shell Material | Polyphenylene Sulfide (PPS) | Shell Finish | - |
| Series | HR30 | Packaging | Tray |
| Other Names | *HR30-7J-12P(71) HR1920 HR307J12P71 |
Orientation | Keyed |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 12 (Power) |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyphenylene Sulfide (PPS) | Ingress Protection | IP67/68 - Dust Tight, Waterproof |
| Features | Backshell, Strain Relief | Fastening Type | Push-Pull |
| Detailed Description | 12 (Power) Position Circular Connector Jack, Male Pins Solder Cup Gold | Current Rating | 2A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Mating | Gold | Connector Type | Jack, Male Pins |
| Color | Black | Cable Opening | 0.244" ~ 0.276" (6.20mm ~ 7.00mm) |
| Backshell Material, Plating | Polyphenylene Sulfide (PPS) | Applications | Industrial, Marine, Medical |
