Home > Products > Connectors, Interconnects > Circular Connectors > HR25A-9P-16P

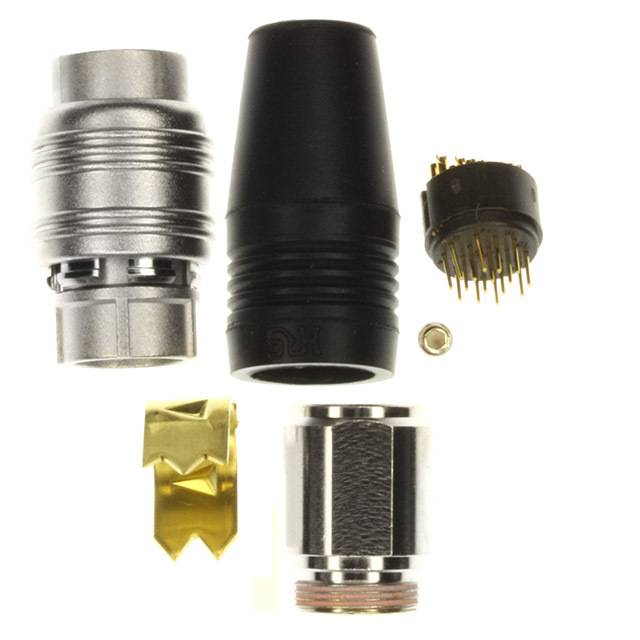

HR25A-9P-16P

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HR25A-9P-16P with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	HR25A-9P-16P
Manufacturer	Hirose
Description	CONN PLUG MALE 16POS GOLD SOLDER
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 3197 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
Reference Price (In US Dollars)	$13.684	$12.351	$11.833

Product parameter
Data sheet

Product parameter

Part Number	HR25A-9P-16P	Manufacturer	Hirose
Description	CONN PLUG MALE 16POS GOLD SOLDER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3197 pcs	Data sheet	HR25A Series
Category	Connectors, Interconnects	Voltage Rating	30VAC, 42VDC
Termination	Solder Cup	Shielding	-
Shell Size, MIL	-	Shell Size - Insert	9
Shell Material	Zinc Alloy	Shell Finish	Nickel
Series	HR25A	Packaging	Bulk
Other Names	*HR25A-9P-16P HR1843 HR25A9P16P	Orientation	Keyed
Operating Temperature	-25°C ~ 85°C	Number of Positions	16
Mounting Type	Free Hanging (In-Line)	Mounting Feature	-
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insert Material	Polyphenylene Sulfide (PPS)	Ingress Protection	-
Features	Backshell, Clamp, Strain Relief	Fastening Type	Push-Pull
Detailed Description	16 Position Circular Connector Plug, Male Pins Solder Cup Gold	Current Rating	1A
Contact Material	Phosphor Bronze	Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Finish - Mating	Gold	Connector Type	Plug, Male Pins
Color	Black, Silver	Cable Opening	-
Backshell Material, Plating	Brass, Nickel	Applications	Industrial
