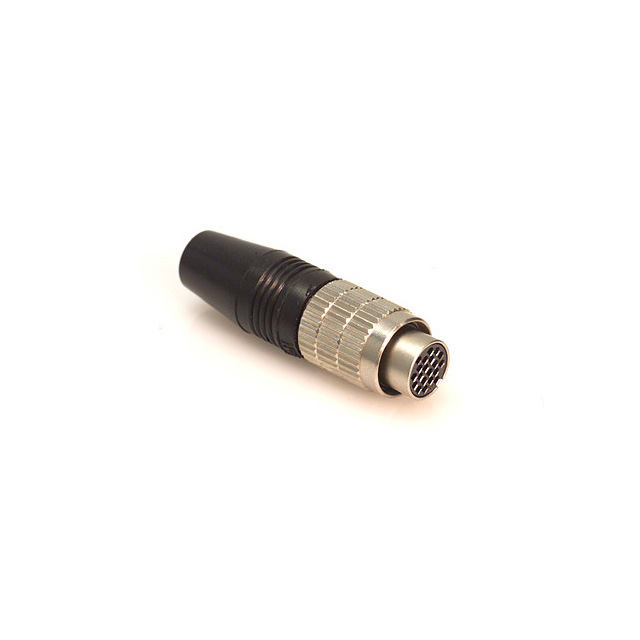

HR25-9TP-20SC(72)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HR25-9TP-20SC(72) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HR25-9TP-20SC(72) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HR25-9TP-20SC(72) |
|---|---|
| Manufacturer | Hirose Electric Co Ltd |
| Description | CONN PLUG 20POS FEMALE CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $9.166 | $8.275 | $7.432 | $7.185 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $6.788 | $6.59 | $6.441 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HR25-9TP-20SC(72) | Manufacturer | Hirose Electric Co Ltd |
|---|---|---|---|
| Description | CONN PLUG 20POS FEMALE CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4622 pcs | Data sheet | HR25 Series |
| Category | Connectors, Interconnects | Wire Gauge or Range - AWG | - |
| Usage | Shielded | Type Attributes | - |
| Type | For Female Sockets | Stacking Direction | Crimp |
| Shield Termination | Circular | Shell Material, Finish | - |
| Shell Finish | Zinc Alloy | Series | HR25 |
| RoHS Status | Bulk | Plug/Mating Plug Diameter | Silver |
| Other Names | *HR25-9TP-20SC(72) HR1479 HR259TP20SC72 |
Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 20 | Note | Contacts Not Included |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Manufacturer Part Number | HR25-9TP-20SC(72) | Large Diameter Supplied | 9 |
| Insert Material | Brass, Nickel | Includes | - |
| Features | Backshell, Cable Clamp, Coupling Nut, Strain Relief | Expanded Description | 20 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut, Strain Relief |
| Description | CONN PLG HSG FMALE 20POS INLINE | Current - Max/Contact | Threaded |
| Coupling Nut Material, Plating | 0.492" (12.50mm) | Coupling Nut Diameter | Nickel |
| Contact Shape | Polyphenylene Sulfide (PPS) | Contact Material | Keyed |
| Connector Type | Plug Housing | Body Material | - |
