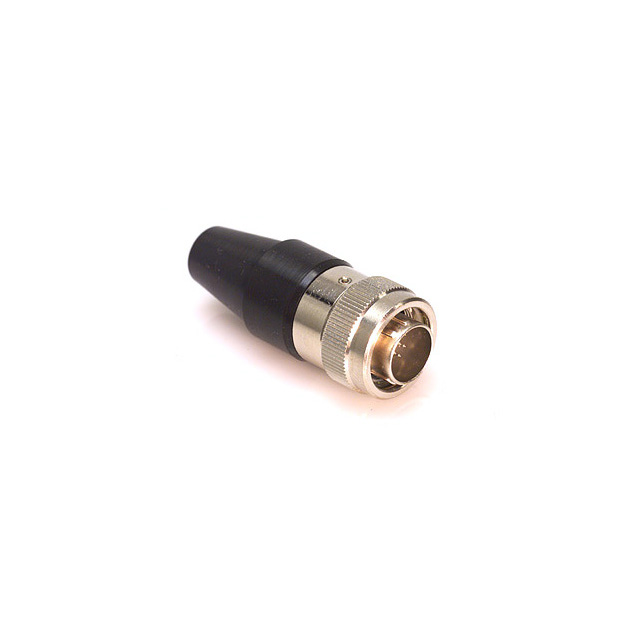

HR22-12TPD-20P(73)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HR22-12TPD-20P(73) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HR22-12TPD-20P(73) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HR22-12TPD-20P(73) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN PLUG MALE 20POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $8.664 | $7.821 | $7.494 | $7.025 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HR22-12TPD-20P(73) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN PLUG MALE 20POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5096 pcs | Data sheet | HR22 Series |
| Category | Connectors, Interconnects | Voltage Rating | 100VAC, 140VDC |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 12 |
| Shell Material | Zinc Alloy | Shell Finish | Nickel |
| Series | HR22 | Packaging | Bulk |
| Other Names | *HR22-12TPD-20P(73) HR1177 HR2212TPD20P73 |
Orientation | Keyed |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 20 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polybutylene Terephthalate (PBT) | Ingress Protection | - |
| Features | Backshell, Clamp, Coupling Nut | Fastening Type | Threaded |
| Detailed Description | 20 Position Circular Connector Plug, Male Pins Solder Cup Silver | Current Rating | 2A |
| Contact Material | Brass | Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Contact Finish - Mating | Silver | Connector Type | Plug, Male Pins |
| Color | Black, Silver | Cable Opening | - |
| Backshell Material, Plating | Acrylonitrile Butadiene Rubber (NBR) | Applications | Industrial |
