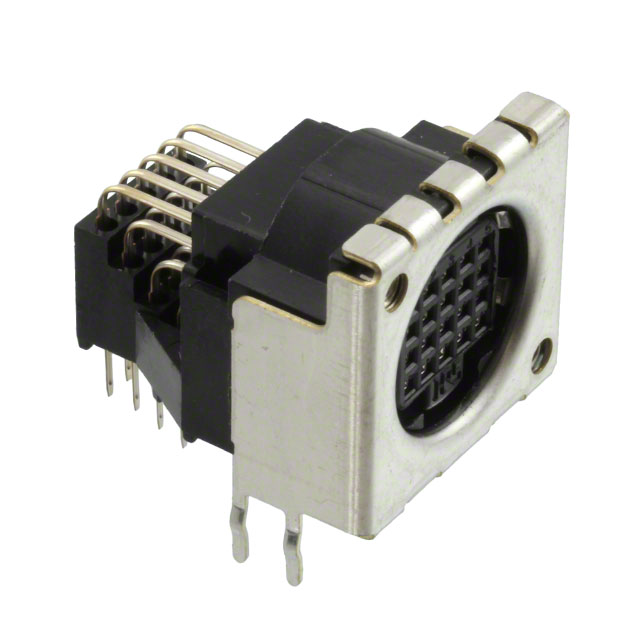

HR12-14RA-20SDL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HR12-14RA-20SDL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HR12-14RA-20SDL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HR12-14RA-20SDL |
|---|---|
| Manufacturer | Hirose |
| Description | CONN RCPT FMALE 20POS SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.547 | $2.439 | $2.227 | $2.121 | $2.015 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | HR12-14RA-20SDL | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RCPT FMALE 20POS SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18619 pcs | Data sheet | HR12 Series |
| Category | Connectors, Interconnects | Voltage Rating | 100VAC, 140VDC |
| Termination | Solder | Shielding | Shielded |
| Shell Size, MIL | - | Shell Size - Insert | 14 |
| Shell Material | Polybutylene Terephthalate (PBT) | Shell Finish | - |
| Series | HR12 | Packaging | Tray |
| Other Names | H124059 HR12-14RA-20SDL-ND |
Orientation | Keyed |
| Operating Temperature | -15°C ~ 60°C | Number of Positions | 20 |
| Mounting Type | Through Hole, Right Angle | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | - | Ingress Protection | - |
| Features | Board Lock, Ground | Fastening Type | Snap-In |
| Detailed Description | 20 Position Circular Connector Receptacle, Female Sockets Solder Silver | Current Rating | - |
| Contact Material | Phosphor Bronze | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Receptacle, Female Sockets |
| Color | Black | Cable Opening | - |
| Backshell Material, Plating | - | Applications | - |
