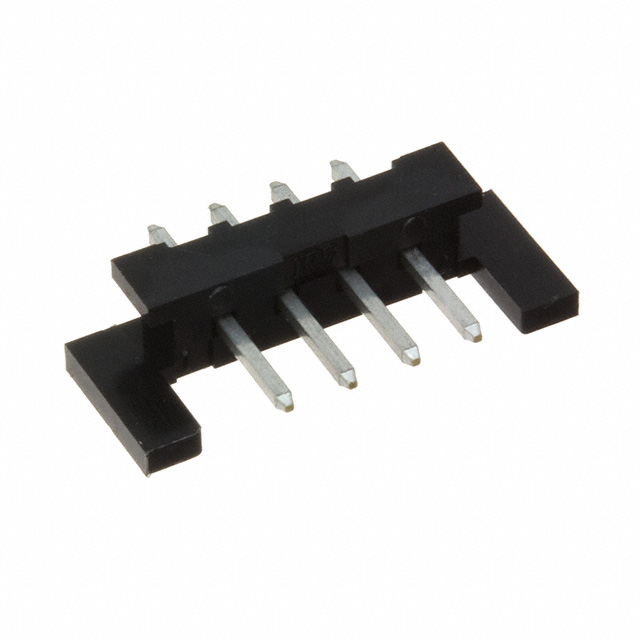

HNC2-2.5P-4DS(55)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HNC2-2.5P-4DS(55) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HNC2-2.5P-4DS(55) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HNC2-2.5P-4DS(55) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN PIN HDR 2.5MM 4POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.152 | $0.141 | $0.127 | $0.113 | $0.108 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.099 | $0.094 | $0.078 | $0.071 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HNC2-2.5P-4DS(55) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN PIN HDR 2.5MM 4POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 280739 pcs | Data sheet | HNC SeriesHNC2-2.5P-4DS(55) Spec Sheet |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | HNC |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | 0.433" (11.00mm) |
| Other Names | 218-0040-0-55 H126246 HNC2-2.5P-4DS(55)-ND |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 15.5mm | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.256" (6.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 4 position 0.098" (2.50mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | 0.197" (5.00mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
