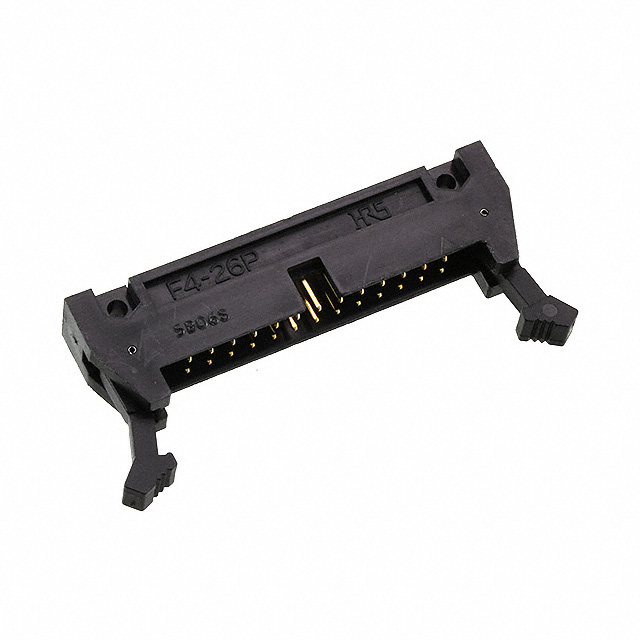

HIF4-26P-3.18DS
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HIF4-26P-3.18DS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HIF4-26P-3.18DS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HIF4-26P-3.18DS |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 26POS 3.18MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $4.126 | $3.947 | $3.319 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HIF4-26P-3.18DS | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 26POS 3.18MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11688 pcs | Data sheet | HIF4 Series |
| Category | Connectors, Interconnects | Voltage Rating | 300V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | HIF4 |
| Row Spacing - Mating | 0.125" (3.18mm) | Pitch - Mating | 0.125" (3.18mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | H123917 HIF4-26P-3.18DS-ND |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.394" (10.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot, Mounting Flange |
| Fastening Type | Latch Lock/Eject Hooks | Detailed Description | Connector Header Through Hole, Right Angle 26 position 0.125" (3.18mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | 0.201" (5.10mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
