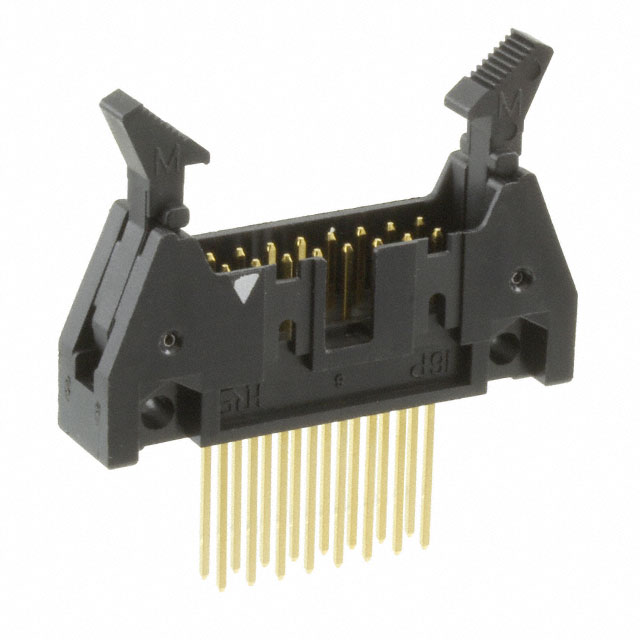

HIF3BA-16P-2.54W
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HIF3BA-16P-2.54W with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HIF3BA-16P-2.54W with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HIF3BA-16P-2.54W |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HDR 16POS 2.54MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.00 | $1.92 | $1.60 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HIF3BA-16P-2.54W | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HDR 16POS 2.54MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21060 pcs | Data sheet | HIF3B Series |
| Category | Connectors, Interconnects | Voltage Rating | 200V |
| Termination | Wire Wrap | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | HIF3B |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 1.043" (26.50mm) |
| Other Names | 610-0494-9-00 H123726 HIF3BA-16P-2.54W-ND |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.701" (17.80mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Latch Lock/Eject Hooks | Detailed Description | Connector Header Through Hole 16 position 0.100" (2.54mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.516" (13.10mm) | Contact Length - Mating | 0.236" (6.00mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
