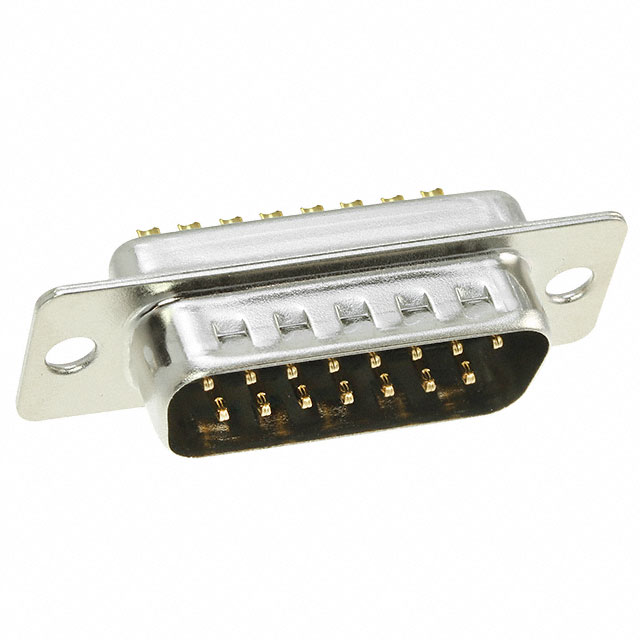

HDAB-15PF(05)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HDAB-15PF(05) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HDAB-15PF(05) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HDAB-15PF(05) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN D-SUB PLUG 15POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.13 | $2.044 | $1.874 | $1.789 | $1.704 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | HDAB-15PF(05) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN D-SUB PLUG 15POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17574 pcs | Data sheet | HD Series |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 400V | Termination | Solder Cup |
| Shell Size, Connector Layout | 2 (DA, A) | Shell Material, Finish | Steel, Nickel Plated |
| Series | HD | Packaging | Tray |
| Other Names | H122681 | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 2 | Number of Positions | 15 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Grounding Indents | Detailed Description | 15 Position D-Sub Plug, Male Pins Connector |
| Current Rating | 3A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | Stamped |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
