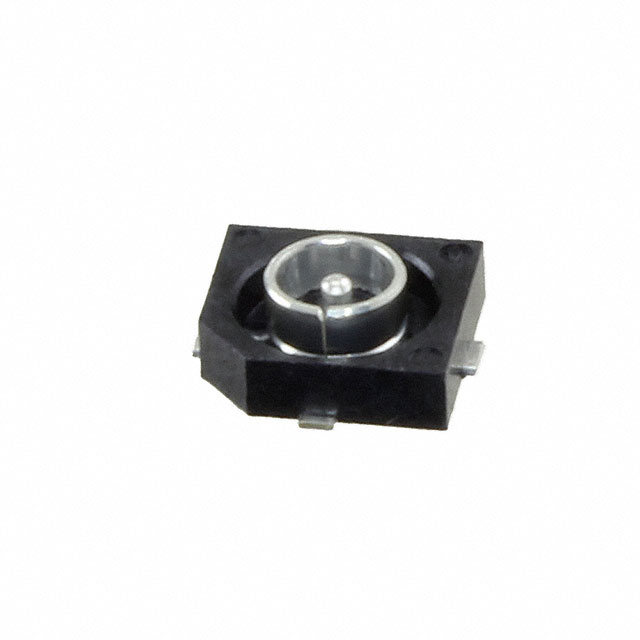

H.FL/S-R-SMT(10)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H.FL/S-R-SMT(10) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H.FL/S-R-SMT(10) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H.FL/S-R-SMT(10) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN H.FL RCPT STR 50 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $1.171 | $1.124 | $1.031 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $0.984 | $0.937 | $0.82 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | H.FL/S-R-SMT(10) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN H.FL RCPT STR 50 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36428 pcs | Data sheet | H.FL Series FlyerH.FL/S-R-SMT(10) DrawingH.FL Spec SheetH.FL Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 300V |
| Shield Termination | Solder | Series | H.FL |
| Packaging | Original-Reel® | Other Names | H122282DKR |
| Operating Temperature | -40°C ~ 90°C | Number of Ports | 1 |
| Mounting Type | Surface Mount | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 50 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Black | Frequency - Max | 2GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Liquid Crystal Polymer (LCP) | Detailed Description | H.FL Connector Receptacle, Male Pin 50 Ohm Surface Mount Solder |
| Contact Termination | Solder | Connector Type | Receptacle, Male Pin |
| Connector Style | H.FL | Center Contact Plating | Silver |
| Center Contact Material | Brass | Cable Group | - |
| Body Material | Phosphor Bronze | Body Finish | Silver |
