H/MS3106A20-29S(73)

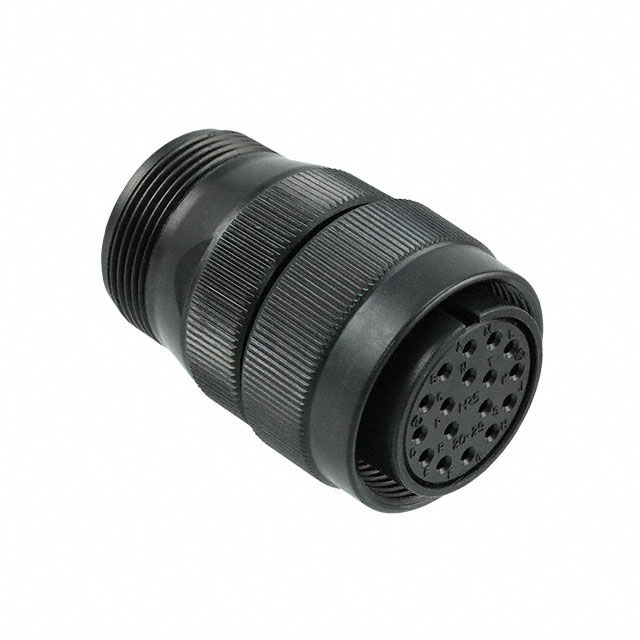

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H/MS3106A20-29S(73) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H/MS3106A20-29S(73) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H/MS3106A20-29S(73) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN PLUG FMALE 17POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $14.088 | $12.715 | $12.182 | |||
- Product parameter
Product parameter
| Part Number | H/MS3106A20-29S(73) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN PLUG FMALE 17POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2638 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | 500VAC, 700VDC |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 20-29 |
| Shell Material | Aluminum Alloy | Shell Finish | Black Zinc |
| Series | H/MS | Packaging | Bulk |
| Other Names | H/MS3106A20-29S(73)-ND H124752 Q5008055 |
Orientation | N (Normal) |
| Operating Temperature | -40°C ~ 125°C | Number of Positions | 17 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polybutylene Terephthalate (PBT) | Ingress Protection | IP67/68 - Dust Tight, Waterproof |
| Features | Backshell, Coupling Nut | Fastening Type | Threaded |
| Detailed Description | 17 Position Circular Connector Plug, Female Sockets Solder Cup Silver | Current Rating | 13A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Contact Finish - Mating | Silver | Connector Type | Plug, Female Sockets |
| Color | Black | Cable Opening | 1.110" (28.20mm) |
| Backshell Material, Plating | Aluminum Alloy, Zinc | Applications | - |
