GT7-26DP-DS(70)

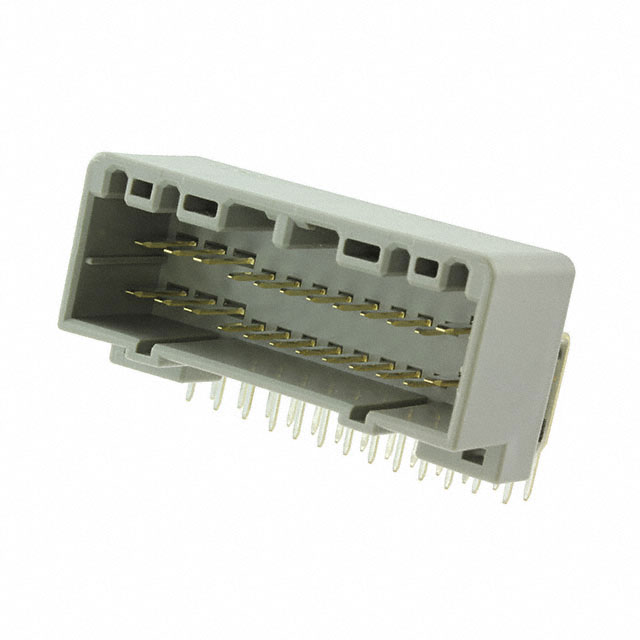

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GT7-26DP-DS(70) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy GT7-26DP-DS(70) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | GT7-26DP-DS(70) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN M 26POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 70 pcs | 140 pcs |
|---|---|---|---|---|---|
| $1.892 | $1.817 | $1.665 | $1.59 | $1.514 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | GT7-26DP-DS(70) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN M 26POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20098 pcs | Data sheet | GT7-26DP-DS(70) DrawingGT7 Series |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | GT7 |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | H122676 | Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.862" (21.89mm) |
| Insulation Color | Gray | Ingress Protection | - |
| Features | Mounting Flange | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole, Right Angle 26 position | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
