Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > GT3B-20DP-2.5DSA(70)

GT3B-20DP-2.5DSA(70)

GT3B-20DP-2.5DSA(70)

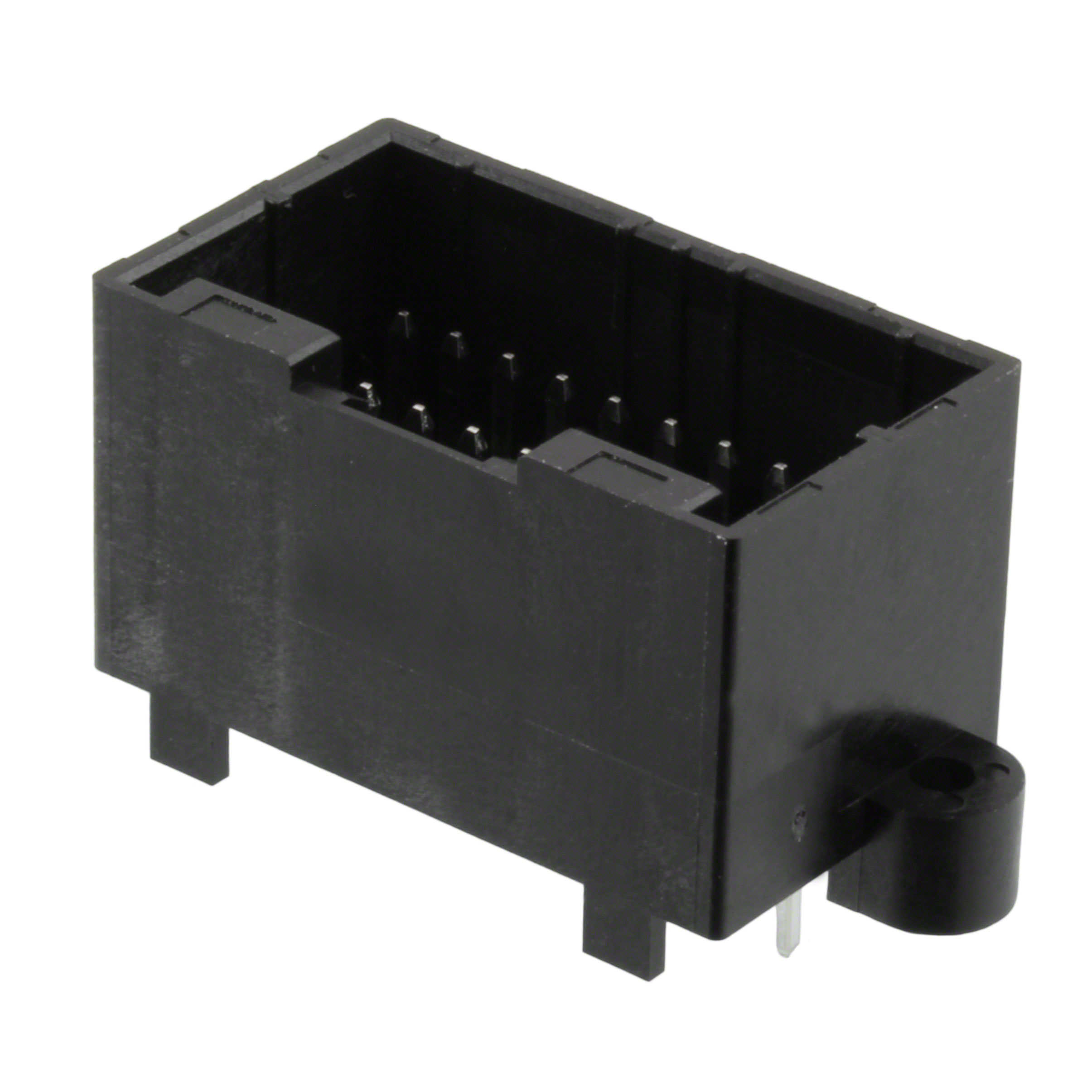

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GT3B-20DP-2.5DSA(70) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number GT3B-20DP-2.5DSA(70)
Manufacturer Hirose
Description CONN 20POS
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 22462 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs25 pcs60 pcs120 pcs
$1.756$1.686$1.546$1.475$1.405

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$1.756

Product parameter

Part Number GT3B-20DP-2.5DSA(70) Manufacturer Hirose
Description CONN 20POS Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 22462 pcs Data sheet GT3B-20DP-2.5DSA(70) Drawing
Category Connectors, Interconnects Voltage Rating -
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series GT3
Row Spacing - Mating 0.205" (5.20mm) Pitch - Mating 0.098" (2.50mm)
Packaging Bulk Overall Contact Length -
Other Names H122674 Operating Temperature -
Number of Rows 2 Number of Positions Loaded All
Number of Positions 20 Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 16 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polybutylene Terephthalate (PBT)
Insulation Height 0.748" (19.00mm) Insulation Color Black
Ingress Protection - Features Mounting Flange
Fastening Type Latch Holder Detailed Description Connector Header Through Hole 20 position 0.098" (2.50mm)
Current Rating - Contact Type Male Pin
Contact Shape Square Contact Material Brass
Contact Length - Post 0.118" (3.00mm) Contact Length - Mating 0.276" (7.00mm)
Contact Finish Thickness - Post - Contact Finish Thickness - Mating -
Contact Finish - Post Tin Contact Finish - Mating Tin
Connector Type Header Applications -
