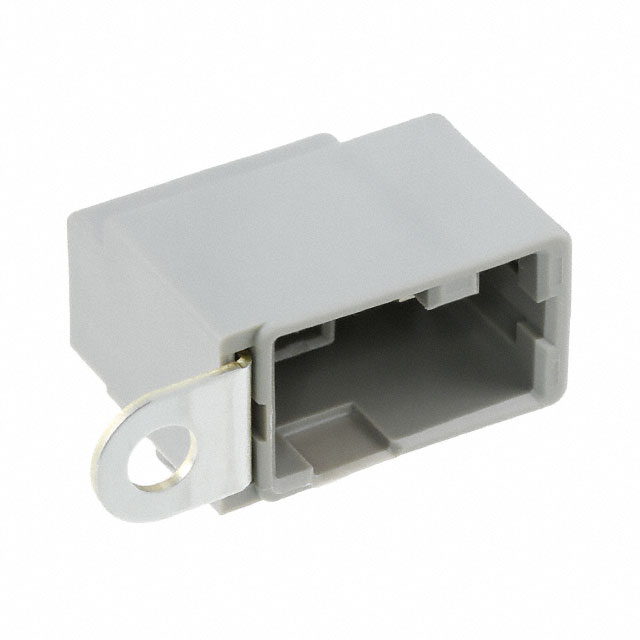

GT13SH-1/1PP-DS
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GT13SH-1/1PP-DS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy GT13SH-1/1PP-DS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | GT13SH-1/1PP-DS |
|---|---|
| Manufacturer | Hirose |
| Description | CONN COAX RCPT R/A 50 OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.832 | $0.754 | $0.708 | $0.677 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.647 | $0.585 | $0.539 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | GT13SH-1/1PP-DS | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN COAX RCPT R/A 50 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63389 pcs | Data sheet | GT13 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Shield Termination | - | Series | GT13 |
| Packaging | Bulk | Other Names | 763-0050-9-00 GT13SH-1/1PP-DS-ND H123494 |
| Operating Temperature | -30°C ~ 105°C | Number of Ports | 2 |
| Mounting Type | Through Hole, Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 30 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Gray | Frequency - Max | 1GHz |
| Features | Board Lock, Mounting Flange | Fastening Type | Push-Pull |
| Dielectric Material | Polybutylene Terephthalate (PBT) | Detailed Description | Coaxial Connector Receptacle, Male Pin 50 Ohm Through Hole, Right Angle Solder |
| Contact Termination | Solder | Connector Type | Receptacle, Male Pin |
| Connector Style | Coaxial | Center Contact Plating | Tin |
| Center Contact Material | Copper Alloy | Cable Group | - |
| Body Material | Polybutylene Terephthalate (PBT) | Body Finish | - |
