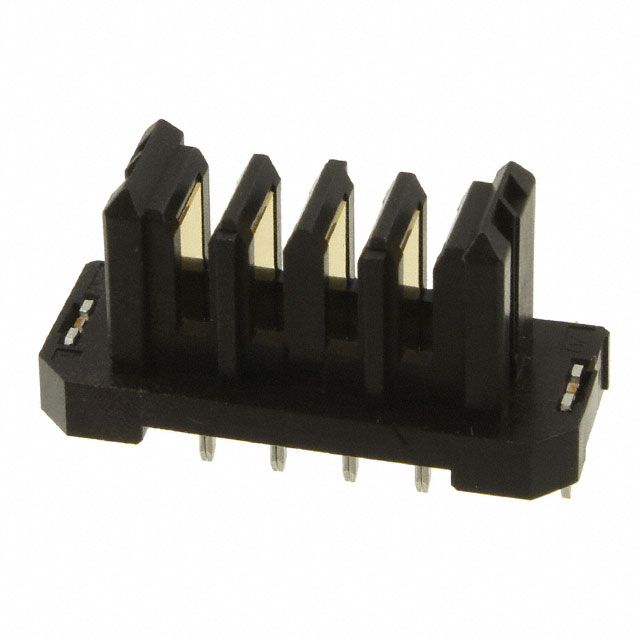

FX30B-4P-3.81DSA20
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FX30B-4P-3.81DSA20 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FX30B-4P-3.81DSA20 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FX30B-4P-3.81DSA20 |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 4POS PCB VERT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 35 pcs | 105 pcs | ||
|---|---|---|---|---|---|
| $1.50 | $1.32 | $1.20 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | FX30B-4P-3.81DSA20 | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 4POS PCB VERT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26821 pcs | Data sheet | FX30B-4P-3.81DSA20 SpecFX30B Series Data SheetFX30B-4P-3.81DSA20 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 2 Wall | Series | FunctionMax™ FX30B |
| Row Spacing - Mating | - | Pitch - Mating | 0.150" (3.81mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | H122203 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 20mm | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.559" (14.20mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide, Board Lock | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 4 position 0.150" (3.81mm) | Current Rating | 13A |
| Contact Type | Male Blade | Contact Shape | Rectangular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.130" (3.30mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
