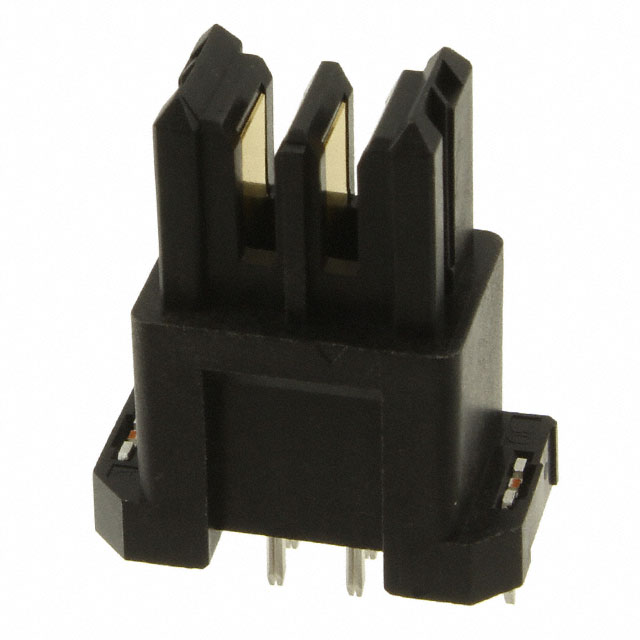

FX30B-2P-3.81DSA30
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FX30B-2P-3.81DSA30 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FX30B-2P-3.81DSA30 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FX30B-2P-3.81DSA30 |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 2POS PCB VERT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 49 pcs | 147 pcs | ||
|---|---|---|---|---|---|
| $1.484 | $1.306 | $1.187 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | FX30B-2P-3.81DSA30 | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 2POS PCB VERT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25301 pcs | Data sheet | FX30B-2P-3.81DSA30 SpecFX30B-2P-3.81DSA30 DrawingFX30B Series Data Sheet |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 2 Wall | Series | FunctionMax™ FX30B |
| Row Spacing - Mating | - | Pitch - Mating | 0.150" (3.81mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | H122209 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 30mm | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.953" (24.20mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Board Lock |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 2 position 0.150" (3.81mm) |
| Current Rating | 16A | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.130" (3.30mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) | Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
