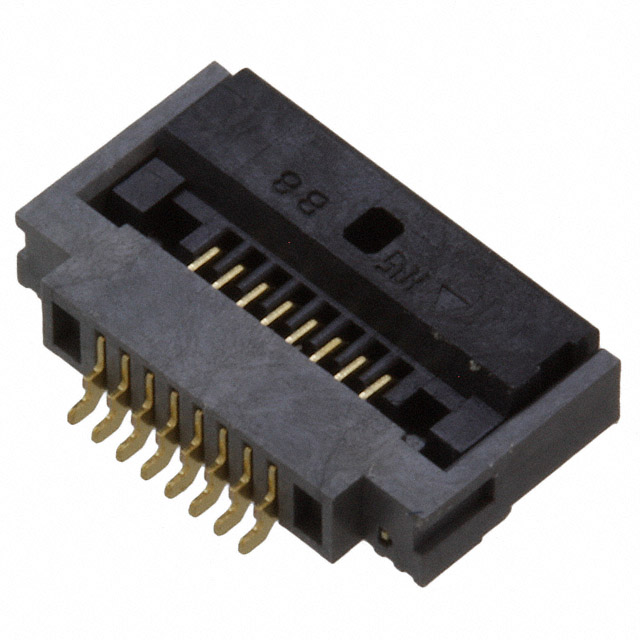

FH52-8S-0.5SH
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FH52-8S-0.5SH with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FH52-8S-0.5SH with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FH52-8S-0.5SH |
|---|---|
| Manufacturer | Hirose |
| Description | CONN FFC BOTTOM 8POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.293 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FH52-8S-0.5SH | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FFC BOTTOM 8POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75929 pcs | Data sheet | FH52-xxS-0.5SH DrawingFH52-xxS-0.5SH SpecFH52 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Series | FH52 |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | FH52-8S-0.5SH-ND H125756TR |
Operating Temperature | -40°C ~ 105°C |
| Number of Positions | 8 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Flip Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Housing Color | Gray | Height Above Board | 0.079" (2.00mm) |
| Flat Flex Type | FFC, FPC | Features | - |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 8 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating | 0.5A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 1.18µin (0.030µm) | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Tabbed |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free | Actuator Color | Black |
