FH42-31S-0.3SHW(99)

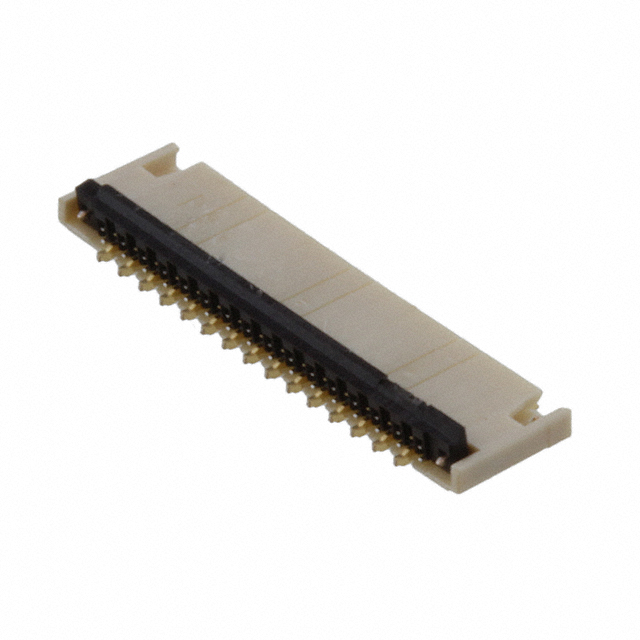

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FH42-31S-0.3SHW(99) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FH42-31S-0.3SHW(99) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FH42-31S-0.3SHW(99) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN FPC TOP 31POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $1.462 | $1.402 | $1.285 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $1.227 | $1.168 | $1.022 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | FH42-31S-0.3SHW(99) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FPC TOP 31POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34824 pcs | Data sheet | FH42-xxS-0.3SHW(99) DrawingFH42 Series DatasheetFH42-xxS-0.3SHW(99) Spec |
| Category | Connectors, Interconnects | Voltage Rating | 30V |
| Termination | Solder | Series | FH42 |
| Pitch | 0.012" (0.30mm) | Packaging | Original-Reel® |
| Other Names | H122003DKR | Operating Temperature | -55°C ~ 85°C |
| Number of Positions | 31 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10 |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 16 Weeks |
| Locking Feature | Flip Lock, Backlock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free | Housing Color | Beige |
| Height Above Board | 0.065" (1.65mm) | Flat Flex Type | FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.12mm |
| Detailed Description | 31 Position FPC Connector Contacts, Top 0.012" (0.30mm) Surface Mount, Right Angle | Current Rating | 0.2A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Top |
| Cable End Type | Notched | Actuator Material | Polyamide (PA), Nylon |
| Actuator Color | Black |
