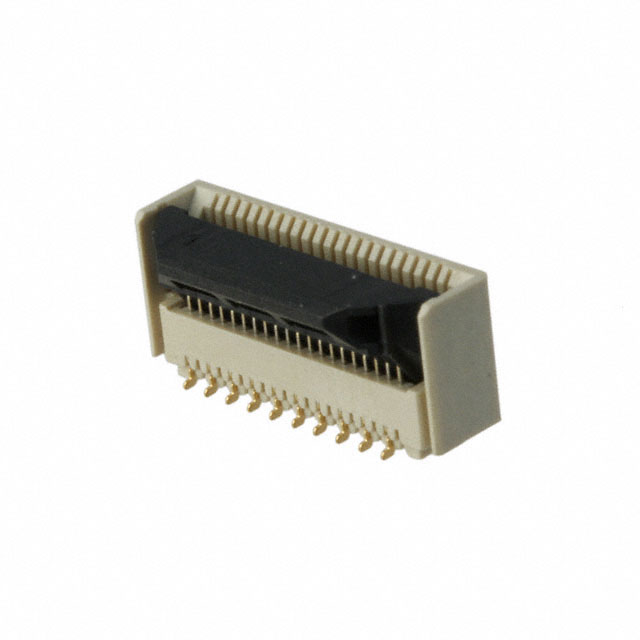

FH40-20S-0.5SV(99)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FH40-20S-0.5SV(99) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FH40-20S-0.5SV(99) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FH40-20S-0.5SV(99) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN FPC VERT 20POS 0.50MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $0.749 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FH40-20S-0.5SV(99) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FPC VERT 20POS 0.50MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42294 pcs | Data sheet | FH40 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | FH40 |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | 580-2105-9-99 | Operating Temperature | -40°C ~ 105°C |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | Beige |
| Height Above Board | 0.228" (5.80mm) | Flat Flex Type | FPC |
| Features | - | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 20 Position FPC Connector Contacts, Vertical, 1 Sided 0.020" (0.50mm) Surface Mount | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Tabbed | Actuator Material | Liquid Crystal Polymer (LCP) |
| Actuator Color | Black |
