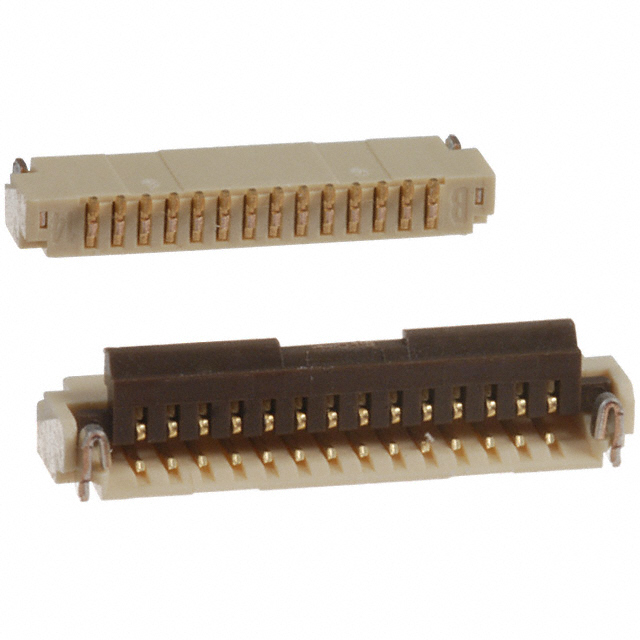

FH33-14S-0.5SH(10)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FH33-14S-0.5SH(10) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FH33-14S-0.5SH(10) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FH33-14S-0.5SH(10) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN FFC BOTTOM 14POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.533 | $0.482 | $0.452 | $0.433 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.413 | $0.374 | $0.344 | $0.295 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | FH33-14S-0.5SH(10) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FFC BOTTOM 14POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76161 pcs | Data sheet | FH33-xxS-0.5SH(10) DrawingFH33-xxS-0.5SH(10) SpecFH33 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | FH33 |
| Pitch | 0.020" (0.50mm) | Packaging | Cut Tape (CT) |
| Other Names | *FH33-14S-0.5SH(10) HFS14CT |
Operating Temperature | -55°C ~ 85°C |
| Number of Positions | 14 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA), Nylon | Housing Color | - |
| Height Above Board | 0.047" (1.20mm) | Flat Flex Type | FFC, FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 14 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | Flash |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tapered | Actuator Material | Polyamide (PA), Nylon |
| Actuator Color | - |
