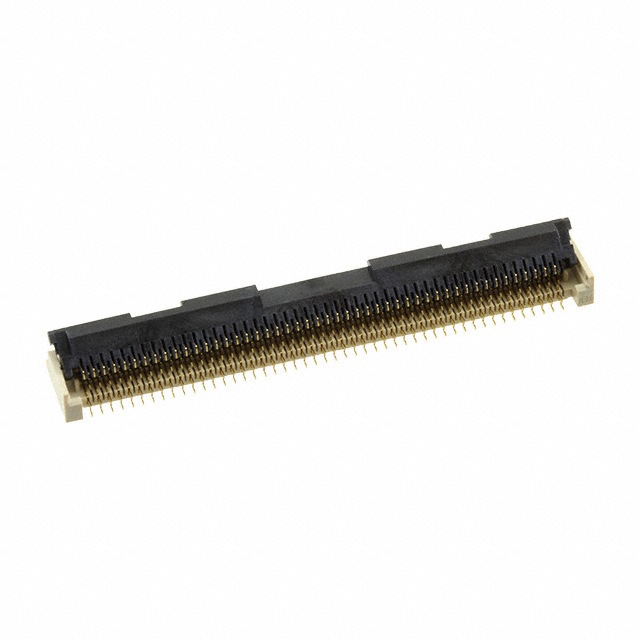

FH30M-96S-0.4SHW(98)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FH30M-96S-0.4SHW(98) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FH30M-96S-0.4SHW(98) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FH30M-96S-0.4SHW(98) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN FPC BOTTOM 96POS 0.40MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $2.213 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FH30M-96S-0.4SHW(98) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FPC BOTTOM 96POS 0.40MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16220 pcs | Data sheet | FH30 Series |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Series | FH30 |
| Pitch | 0.016" (0.40mm) | Packaging | Tape & Reel (TR) |
| Other Names | 580-0103-2-98 FH30M-96S-0.4SHW(98)-ND H124643TR |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 96 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Locking Feature | Rotary Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free | Housing Color | - |
| Height Above Board | 0.118" (3.00mm) | Flat Flex Type | FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 96 Position FPC Connector Contacts, Bottom 0.016" (0.40mm) Surface Mount, Right Angle | Current Rating | 0.3A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tabbed | Actuator Material | - |
| Actuator Color | - |
