Home > Products > Connectors, Interconnects > FFC, FPC (Flat Flexible) Connectors > FH26W-15S-0.3SHW(10)

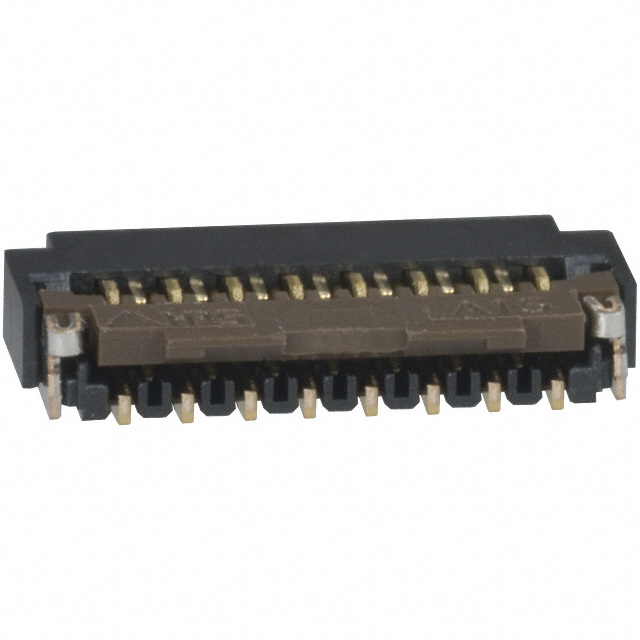

FH26W-15S-0.3SHW(10)

FH26W-15S-0.3SHW(10)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FH26W-15S-0.3SHW(10) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number FH26W-15S-0.3SHW(10)
Manufacturer Hirose
Description CONN FPC BOTTOM 15POS 0.30MM R/A
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 4431 pcs
Reference Price
(In US Dollars)		Get a quote

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.00

Product parameter

Part Number FH26W-15S-0.3SHW(10) Manufacturer Hirose
Description CONN FPC BOTTOM 15POS 0.30MM R/A Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 4431 pcs Data sheet FH26W-xxS-0.3SHW(10) Drawing
Category Connectors, Interconnects Voltage Rating 30V
Termination Solder Series FH26
Pitch 0.012" (0.30mm) Packaging Tape & Reel (TR)
Other Names 580-2402-4-10 Operating Temperature -55°C ~ 85°C
Number of Positions 15 Mounting Type Surface Mount, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Mating Cycles 10
Material Flammability Rating UL94 HB Locking Feature Flip Lock
Lead Free Status / RoHS Status Lead free / RoHS Compliant Housing Material Liquid Crystal Polymer (LCP)
Housing Color Black Height Above Board 0.039" (1.00mm)
Flat Flex Type FPC Features Zero Insertion Force (ZIF)
FFC, FCB Thickness 0.20mm Detailed Description 15 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Current Rating 0.2A Contact Material Phosphor Bronze
Contact Finish Thickness - Contact Finish Gold
Connector/Contact Type Contacts, Bottom Cable End Type Tapered
Actuator Material Polyamide (PA), Nylon Actuator Color Brown
