FH26-37S-0.3SHW(98)

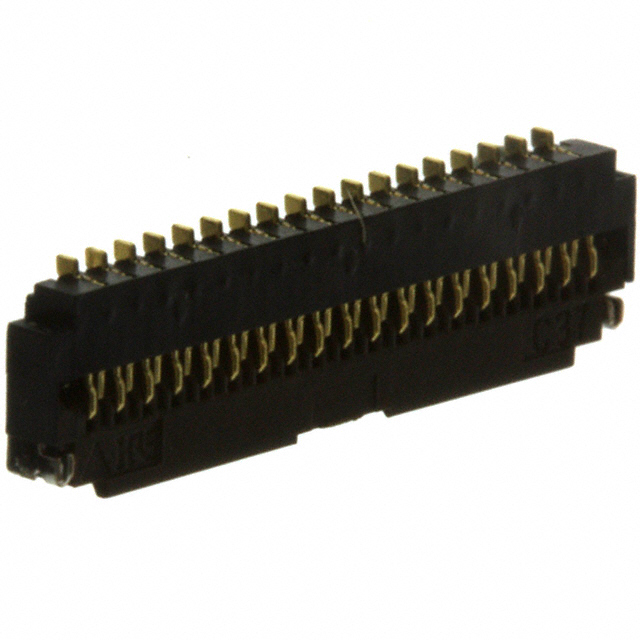

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FH26-37S-0.3SHW(98) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FH26-37S-0.3SHW(98) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FH26-37S-0.3SHW(98) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN FPC BOTTOM 37POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | FH26-37S-0.3SHW(98) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FPC BOTTOM 37POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4576 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | 30V |
| Termination | Solder | Series | FH26 |
| Pitch | 0.012" (0.30mm) | Packaging | Tape & Reel (TR) |
| Other Names | 580-0224-7-98 | Operating Temperature | -55°C ~ 85°C |
| Number of Positions | 37 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Flip Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP) |
| Housing Color | Black | Height Above Board | 0.039" (1.00mm) |
| Flat Flex Type | FPC | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.20mm | Detailed Description | 37 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle |
| Current Rating | 0.2A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Tapered |
| Actuator Material | Polyamide (PA), Nylon | Actuator Color | Brown |
