FH23-61S-0.3SHW(51)

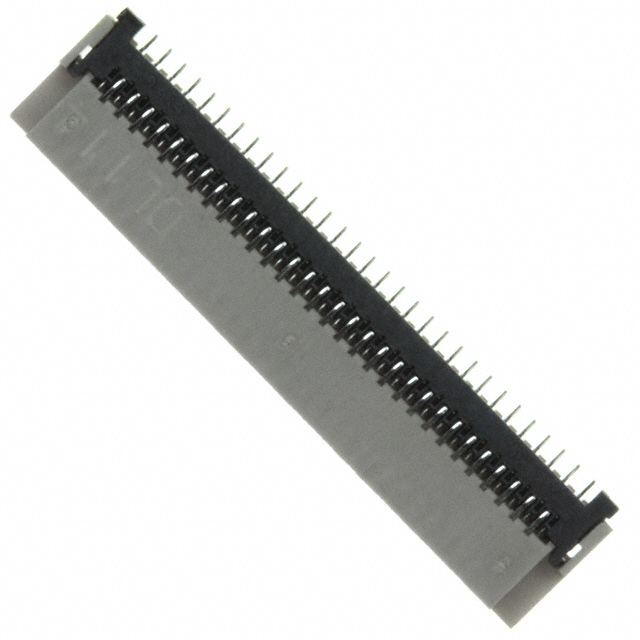

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FH23-61S-0.3SHW(51) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FH23-61S-0.3SHW(51) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FH23-61S-0.3SHW(51) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN FPC BOTTOM 61POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FH23-61S-0.3SHW(51) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FPC BOTTOM 61POS 0.30MM R/A | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4261 pcs | Data sheet | FH23 Series |
| Category | Connectors, Interconnects | Voltage Rating | 30V |
| Termination | Solder | Series | FH23 |
| Pitch | 0.012" (0.30mm) | Packaging | Cut Tape (CT) |
| Other Names | *FH23-61S-0.3SHW(51) FH2361S03SHW51 HFQ161CT |
Operating Temperature | -55°C ~ 85°C |
| Number of Positions | 61 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Flip Lock |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Housing Material | Liquid Crystal Polymer (LCP) |
| Housing Color | Beige | Height Above Board | 0.049" (1.25mm) |
| Flat Flex Type | FPC | Features | Low Insertion Force (LIF) |
| FFC, FCB Thickness | 0.20mm | Detailed Description | 61 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle |
| Current Rating | 0.3A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Tin-Lead |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Tapered |
| Actuator Material | Liquid Crystal Polymer (LCP) | Actuator Color | Black |
