FH21-8S-1DSA

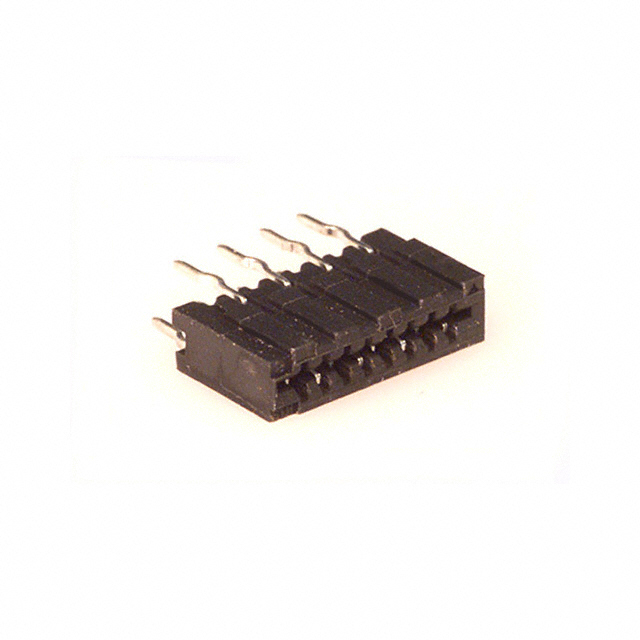

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FH21-8S-1DSA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FH21-8S-1DSA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FH21-8S-1DSA |
|---|---|
| Manufacturer | Hirose |
| Description | CONN FFC FPC VERT 8POS 1MM PCB |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FH21-8S-1DSA | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FFC FPC VERT 8POS 1MM PCB | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 6026 pcs | Data sheet | FH21 シリーズ |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Kinked Pin | Series | FH21 |
| Pitch | 0.039" (1.00mm) | Packaging | Bulk |
| Other Names | *FH21-8S-1DSA HFF08T |
Operating Temperature | -30°C ~ 70°C |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Housing Material | Polybutylene Terephthalate (PBT) |
| Housing Color | Black | Height Above Board | 0.228" (5.80mm) |
| Flat Flex Type | FFC, FPC | Features | Low Insertion Force (LIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 8 Position FFC, FPC Connector Contacts, Vertical, 2 Sided 0.039" (1.00mm) Through Hole |
| Current Rating | 0.5A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Solder Plating |
| Connector/Contact Type | Contacts, Vertical, 2 Sided | Cable End Type | Straight |
| Actuator Material | - | Actuator Color | - |
