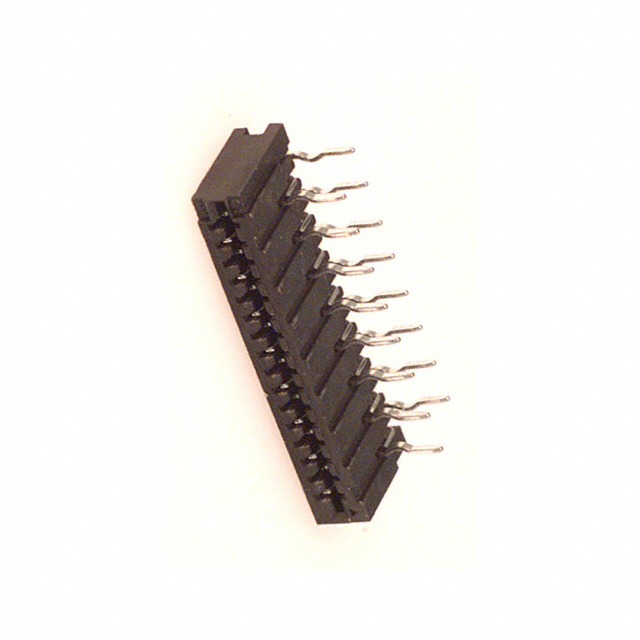

FH21-16S-1DS
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FH21-16S-1DS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FH21-16S-1DS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FH21-16S-1DS |
|---|---|
| Manufacturer | Hirose |
| Description | CONN FFC FPC 16POS 1.00MM R/A |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FH21-16S-1DS | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FFC FPC 16POS 1.00MM R/A | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4595 pcs | Data sheet | FH21 シリーズ |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Kinked Pin | Series | FH21 |
| Pitch | 0.039" (1.00mm) | Packaging | Bulk |
| Other Names | *FH21-16S-1DS HFG16T |
Operating Temperature | -30°C ~ 70°C |
| Number of Positions | 16 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Housing Material | Polybutylene Terephthalate (PBT) |
| Housing Color | Black | Height Above Board | 0.106" (2.70mm) |
| Flat Flex Type | FFC, FPC | Features | Low Insertion Force (LIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 16 Position FFC, FPC Connector Contacts, Top and Bottom 0.039" (1.00mm) Through Hole, Right Angle |
| Current Rating | 0.5A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Solder Plating |
| Connector/Contact Type | Contacts, Top and Bottom | Cable End Type | Straight |
| Actuator Material | - | Actuator Color | - |
