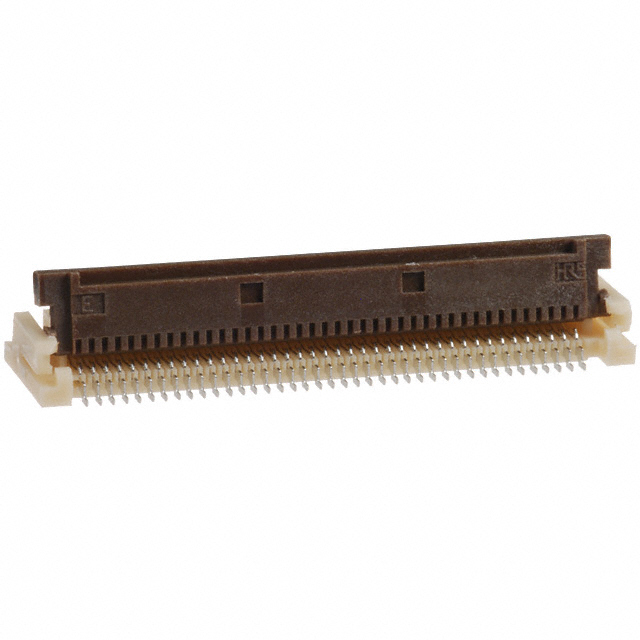

FH16-80S-0.3SHW
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FH16-80S-0.3SHW with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FH16-80S-0.3SHW with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FH16-80S-0.3SHW |
|---|---|
| Manufacturer | Hirose |
| Description | CONN FPC BOTTOM 80POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FH16-80S-0.3SHW | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FPC BOTTOM 80POS 0.30MM R/A | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4611 pcs | Data sheet | FH16 シリーズ |
| Category | Connectors, Interconnects | Voltage Rating | 30V |
| Termination | Solder | Series | FH16 |
| Pitch | 0.012" (0.30mm) | Packaging | Cut Tape (CT) |
| Other Names | *FH16-80S-0.3SHW FH1680S03SHW HFP080CT |
Operating Temperature | -40°C ~ 70°C |
| Number of Positions | 80 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Flip Lock |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Housing Material | Liquid Crystal Polymer (LCP), Polyamide (PA), Nylon |
| Housing Color | Beige | Height Above Board | 0.118" (3.00mm) |
| Flat Flex Type | FPC | Features | Pick and Place Cap, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 80 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle |
| Current Rating | 0.15A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Tin-Lead |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Tabbed |
| Actuator Material | Polyphenylene Sulfide (PPS) | Actuator Color | Brown |
