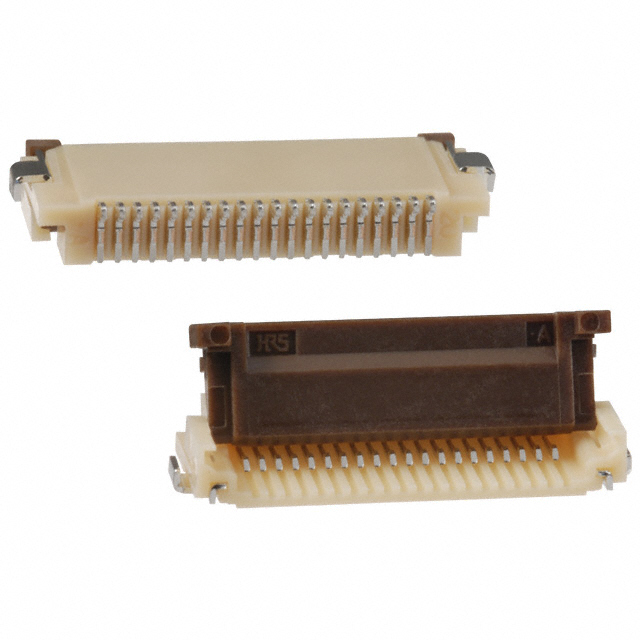

FH12F-20S-0.5SH
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FH12F-20S-0.5SH with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FH12F-20S-0.5SH with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FH12F-20S-0.5SH |
|---|---|
| Manufacturer | Hirose |
| Description | CONN FFC BOTTOM 20POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FH12F-20S-0.5SH | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FFC BOTTOM 20POS 0.50MM R/A | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5850 pcs | Data sheet | FH12 Series (6-24) |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | FH12 |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | HFR20TR | Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 20 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Flip Lock |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Housing Material | Polyamide (PA), Nylon |
| Housing Color | Beige | Height Above Board | 0.079" (2.00mm) |
| Flat Flex Type | FFC, FPC | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.18mm | Detailed Description | 20 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating | 0.5A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Tin-Lead |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Straight |
| Actuator Material | Polyphenylene Sulfide (PPS) | Actuator Color | Brown |
