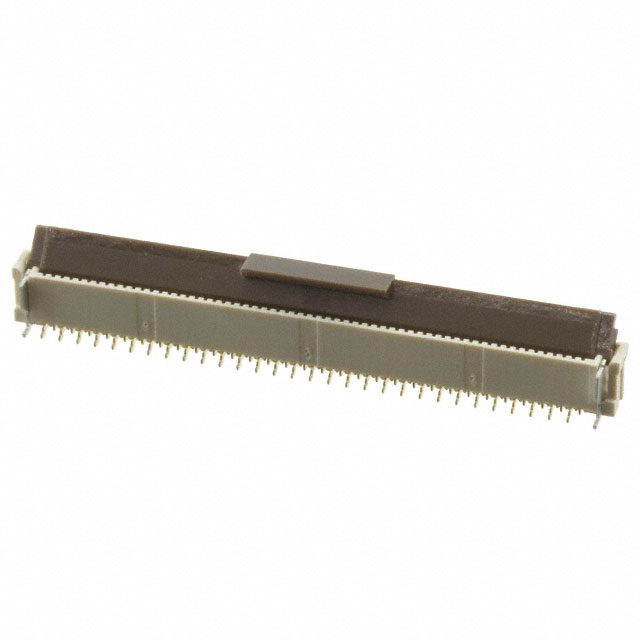

FH12-60S-0.5SVA(54)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FH12-60S-0.5SVA(54) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FH12-60S-0.5SVA(54) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FH12-60S-0.5SVA(54) |
|---|---|
| Manufacturer | Hirose Electric Co Ltd |
| Description | CONN FFC VERT 60POS 0.50MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 3000 pcs | 5000 pcs | |
|---|---|---|---|---|---|
| $1.09 | $1.053 | $1.015 | $0.977 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | FH12-60S-0.5SVA(54) | Manufacturer | Hirose Electric Co Ltd |
|---|---|---|---|
| Description | CONN FFC VERT 60POS 0.50MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31451 pcs | Data sheet | FH12-xxS-0.5SVA(54) SpecFH12-xxS-0.5SVA(54) DrawingFH12 Series Catalog |
| Category | Connectors, Interconnects | Voltage - DC Spark Over (Nom) | Phosphor Bronze |
| Termination | Solder | Simplex/Duplex | - |
| Series | FH12 | RoHS Status | Tape & Reel (TR) |
| Plug/Mating Plug Diameter | - | Pitch - Connector | 50V |
| Other Names | 586-0749-9-54 FH12-60S-0.5SVA(54)-ND |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 60 | Number of Conductors | 0.020" (0.50mm) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Manufacturer Part Number | FH12-60S-0.5SVA(54) | Locking Feature | 0.30mm |
| Height Above Board | 0.142" (3.60mm) | Features | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | Contacts, Vertical, 1 Sided | Expanded Description | 60 Position FFC, FPC Connector Contacts, Vertical, 1 Sided 0.020" (0.50mm) Surface Mount |
| Description | CONN FFC VERT 60POS 0.50MM SMD | Current Rating | 0.5A |
| Contact Finish Thickness | Gold | Connector/Contact Type | FFC, FPC |
| Center Contact Finish | - | Cable Opening | Polyamide (PA), Nylon |
| Cable End Type | Flip Lock | Cable Diameter | - |
| Actuator Material | Straight | Actuator Color | Polyphenylene Sulfide (PPS) |
