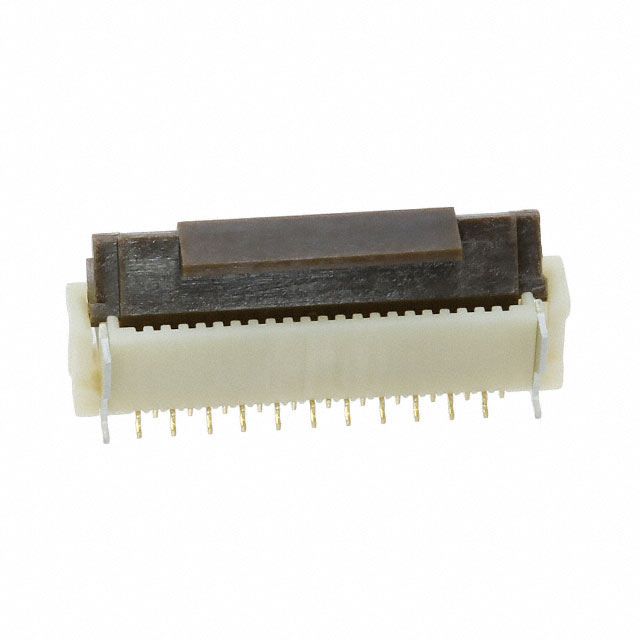

FH12-22S-0.5SVA(54)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FH12-22S-0.5SVA(54) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FH12-22S-0.5SVA(54) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FH12-22S-0.5SVA(54) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN FFC VERT 22POS 0.50MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.313 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FH12-22S-0.5SVA(54) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FFC VERT 22POS 0.50MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 74837 pcs | Data sheet | FH12 Series DatasheetFH12-xxS-0.5SVA(54) SpecFH12-xxS-0.5SVA(54) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | FH12 |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | 586-0813-6-54 FH12-22S-0.5SVA(54)-ND H125142TR |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 22 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA), Nylon | Housing Color | - |
| Height Above Board | 0.142" (3.60mm) | Flat Flex Type | FFC, FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 22 Position FFC, FPC Connector Contacts, Vertical, 1 Sided 0.020" (0.50mm) Surface Mount | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Straight | Actuator Material | Polyphenylene Sulfide (PPS) |
| Actuator Color | - |
