FH12-16S-1SH(55)

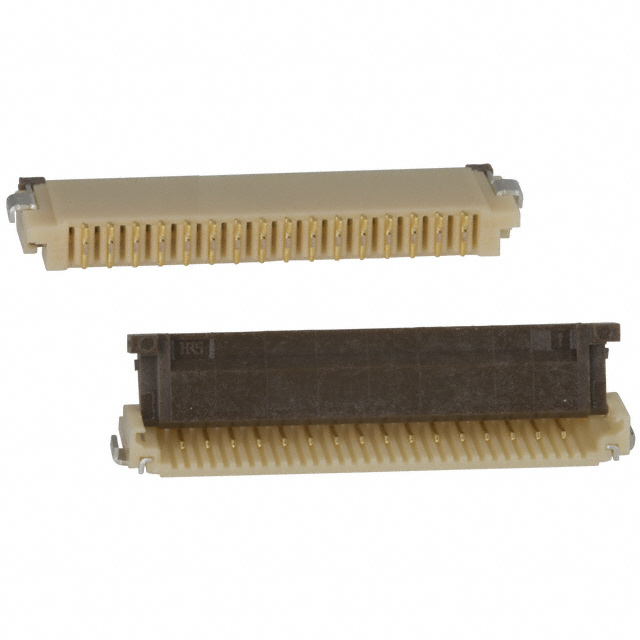

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FH12-16S-1SH(55) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FH12-16S-1SH(55) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FH12-16S-1SH(55) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN FFC BOTTOM 16POS 1.00MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.535 | $0.484 | $0.454 | $0.434 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.415 | $0.375 | $0.346 | $0.296 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | FH12-16S-1SH(55) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FFC BOTTOM 16POS 1.00MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75537 pcs | Data sheet | FH12-xxS-1SH(55) SpecFH12 Series DatasheetFH12-xxS-1SH(55) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | FH12 |
| Pitch | 0.039" (1.00mm) | Packaging | Original-Reel® |
| Other Names | HFB116DKR | Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 16 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA), Nylon | Housing Color | Beige |
| Height Above Board | 0.079" (2.00mm) | Flat Flex Type | FFC, FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 16 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Straight | Actuator Material | Polyphenylene Sulfide (PPS) |
| Actuator Color | Brown |
