Home > Products > Connectors, Interconnects > FFC, FPC (Flat Flexible) Connectors > FH10A-26S-1SH(02)

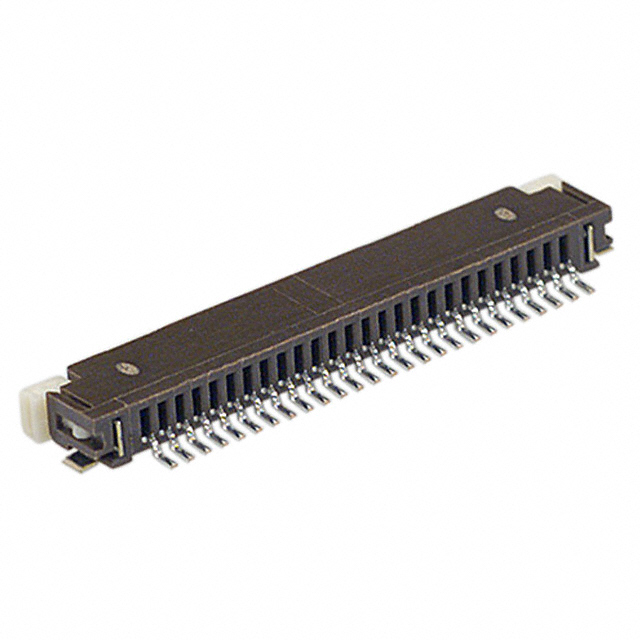

FH10A-26S-1SH(02)

FH10A-26S-1SH(02)

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FH10A-26S-1SH(02) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	FH10A-26S-1SH(02)
Manufacturer	Hirose
Description	CONN FFC FPC TOP 26POS 1MM R/A
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 5449 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	FH10A-26S-1SH(02)	Manufacturer	Hirose
Description	CONN FFC FPC TOP 26POS 1MM R/A	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	5449 pcs	Data sheet	FH10A シリーズ
Category	Connectors, Interconnects	Voltage Rating	50V
Termination	Solder	Series	FH10A
Pitch	0.039" (1.00mm)	Packaging	Tape & Reel (TR)
Other Names	*FH10A-26S-1SH(02)	Operating Temperature	-55°C ~ 85°C
Number of Positions	26	Mounting Type	Surface Mount, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mating Cycles	-
Material Flammability Rating	UL94 V-0	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Housing Material	Polybutylene Terephthalate (PBT)
Housing Color	Natural	Height Above Board	0.118" (3.00mm)
Flat Flex Type	FFC, FPC	Features	Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	26 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	-	Contact Finish	Solder Plating
Connector/Contact Type	Contacts, Top	Cable End Type	Straight
Actuator Material	-	Actuator Color	-
