DX20BM-80S(50)

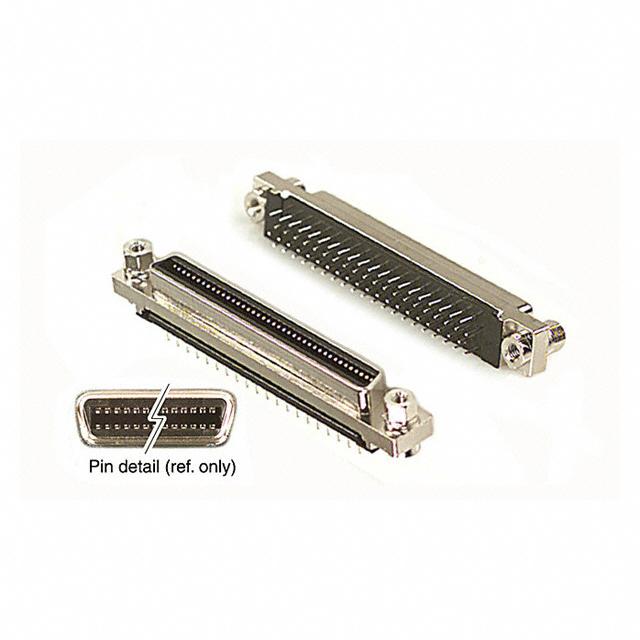

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DX20BM-80S(50) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DX20BM-80S(50) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DX20BM-80S(50) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN RECEPT VERT 80 POS PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.275 | $5.828 | $5.23 | $5.08 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DX20BM-80S(50) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPT VERT 80 POS PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6837 pcs | Data sheet | DXM Series DatasheetDX20BM-80S(50) SpecDX20BM-80S(50) Drawing |
| Category | Connectors, Interconnects | Type | Miniature High Density (HD) |
| Termination | Solder | Series | DXM |
| Other Names | H11326 | Number of Rows | 2 |
| Number of Positions | 80 | Mounting Type | Panel Mount, Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Flange Feature | Mating Side, Female Screwlock (M2.6) |
| Features | - | Detailed Description | 80 Position Receptacle Connector Miniature High Density (HD) Panel Mount, Through Hole Solder |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Receptacle | Connector Style | Outer Shroud Contacts |
