Home > Products > Connectors, Interconnects > Rectangular Connectors - Arrays, Edge Type, Mezzan > DF9-25S-1V(32)

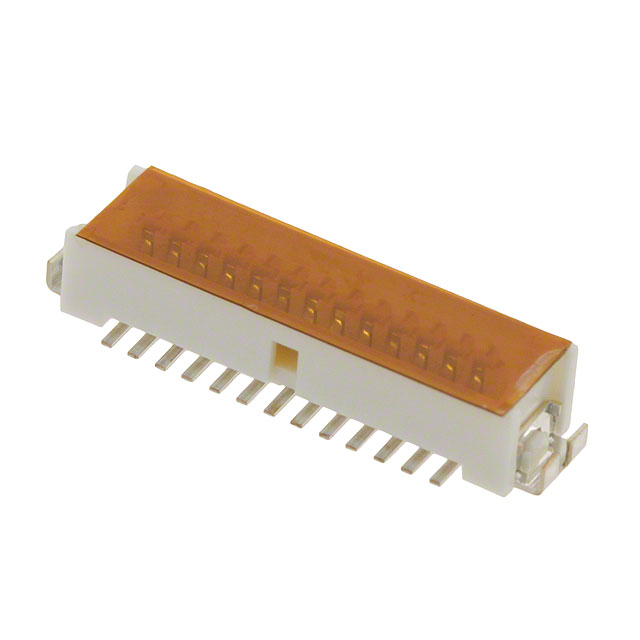

DF9-25S-1V(32)

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF9-25S-1V(32) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	DF9-25S-1V(32)
Manufacturer	Hirose
Description	CONN RECEPT 25POS 1MM SMD TIN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 77938 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$0.265

Product parameter
Data sheet

Product parameter

Part Number	DF9-25S-1V(32)	Manufacturer	Hirose
Description	CONN RECEPT 25POS 1MM SMD TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	77938 pcs	Data sheet	DF9 Series Datasheet DF9-xS-1V(32) Spec DF9-xS-1V(32) Drawing
Category	Connectors, Interconnects	Series	DF9
Pitch	0.039" (1.00mm)	Packaging	Tape & Reel (TR)
Other Names	DF925S1V32 H10405TR	Number of Rows	2
Number of Positions	25	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mated Stacking Heights	4.3mm
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Above Board	0.130" (3.30mm)	Features	Board Guide, Solder Retention
Detailed Description	25 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Tin	Contact Finish Thickness	39.4µin (1.00µm)
Contact Finish	Tin	Connector Type	Receptacle, Outer Shroud Contacts
