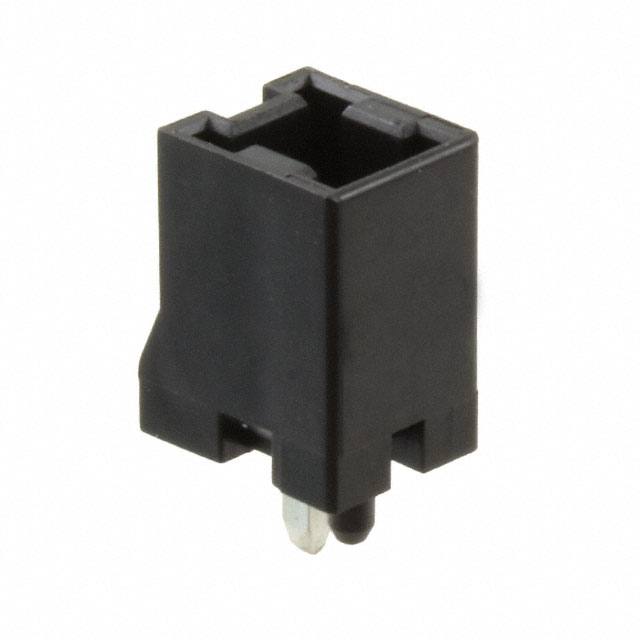

DF63-1P-3.96DSA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF63-1P-3.96DSA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF63-1P-3.96DSA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF63-1P-3.96DSA |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HDR VERT 3.96MM 1POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.131 | $0.124 | $0.087 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.074 | $0.062 | $0.053 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF63-1P-3.96DSA | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HDR VERT 3.96MM 1POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 390785 pcs | Data sheet | DF63 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | EnerBee™ DF63 |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | H124963 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 18.8mm | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.683" (17.35mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 1 position |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.150" (3.81mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
