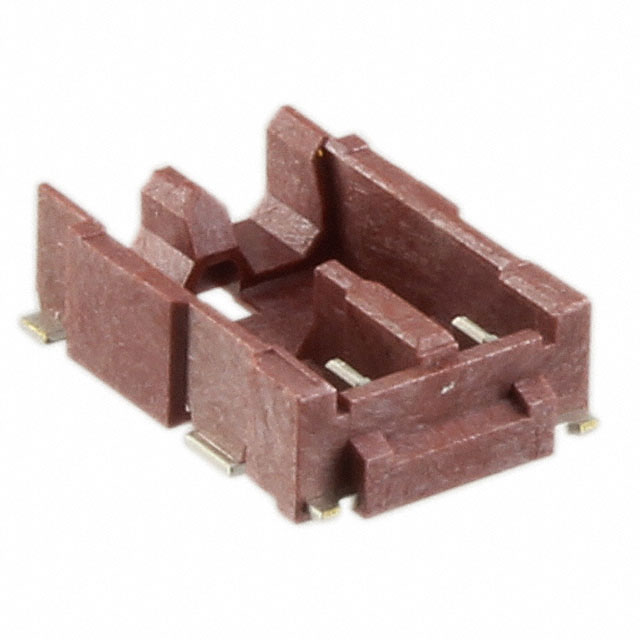

DF61-2P-2.2V(21)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF61-2P-2.2V(21) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF61-2P-2.2V(21) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF61-2P-2.2V(21) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HDR 2.2MM 2POS SMD RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.268 | $0.237 | $0.205 | $0.167 | $0.149 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DF61-2P-2.2V(21) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HDR 2.2MM 2POS SMD RED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 140046 pcs | Data sheet | DF61-2P-2.2V(21) SpecDF61 SeriesDF61-2P-2.2V(21) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall | Series | DF61 |
| Row Spacing - Mating | - | Pitch - Mating | 0.087" (2.20mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | H121972CT | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 2.38mm | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.086" (2.18mm) | Insulation Color | Red |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Swing Lock | Detailed Description | Connector Header Surface Mount 2 position 0.087" (2.20mm) |
| Current Rating | - | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
