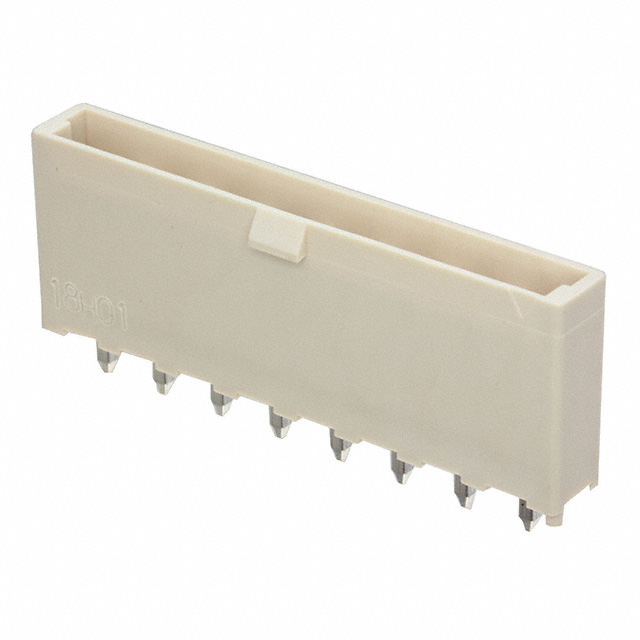

DF5A-8P-5DSA(35)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF5A-8P-5DSA(35) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF5A-8P-5DSA(35) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF5A-8P-5DSA(35) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HDR 8POS 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.264 | $0.246 | $0.189 | $0.164 | $0.136 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DF5A-8P-5DSA(35) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HDR 8POS 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 151007 pcs | Data sheet | DF5(A) SeriesDF5A-xP-5DSA(35) Spec Sheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | DF5 |
| Row Spacing - Mating | - | Pitch - Mating | 0.197" (5.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 676-0022-1-35 DF5A-8P-5DSA(35)-ND H126078 |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 22.5mm | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.591" (15.00mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 8 position 0.197" (5.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
