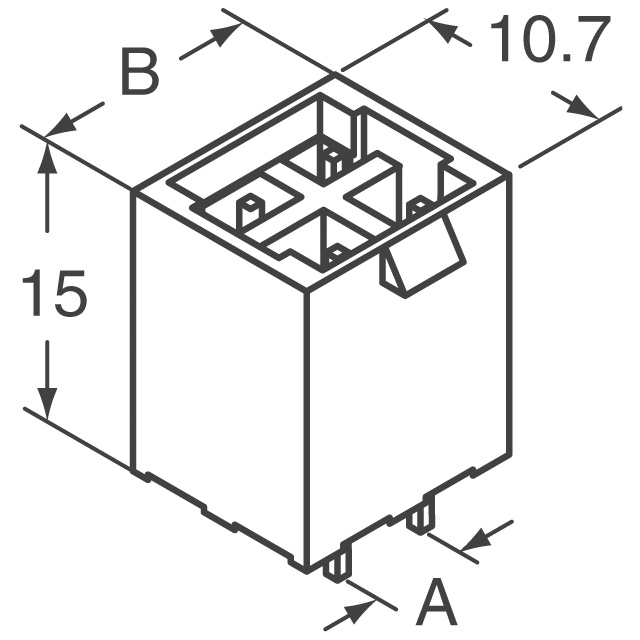

DF5A-6DP-5DSA(35)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF5A-6DP-5DSA(35) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF5A-6DP-5DSA(35) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF5A-6DP-5DSA(35) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HDR 6POS 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $0.138 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF5A-6DP-5DSA(35) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HDR 6POS 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 165201 pcs | Data sheet | DF5(A) Series |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | DF5 |
| Row Spacing - Mating | 0.197" (5.00mm) | Pitch - Mating | 0.197" (5.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 676-0030-0-35 | Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 22.5mm | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.591" (15.00mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 6 position 0.197" (5.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
