DF58-4P-1.2V(21)

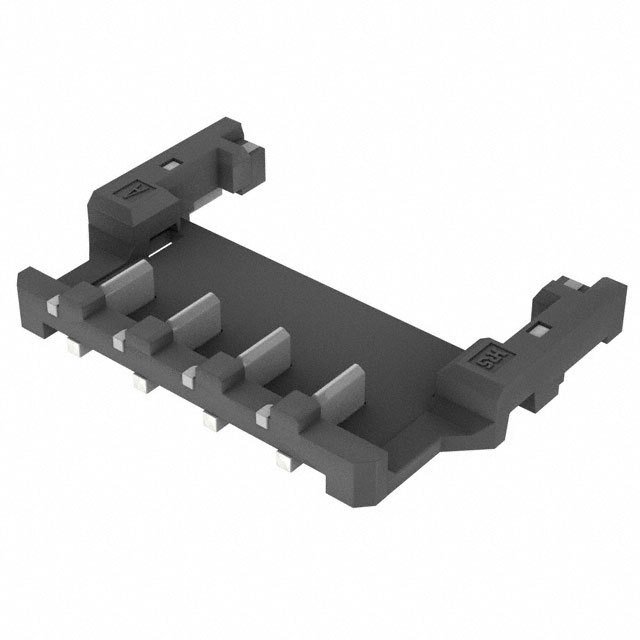

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF58-4P-1.2V(21) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF58-4P-1.2V(21) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF58-4P-1.2V(21) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HDR 1.2MM SMT 4POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.25 | $0.235 | $0.211 | $0.188 | $0.18 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.164 | $0.157 | $0.129 | $0.117 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF58-4P-1.2V(21) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HDR 1.2MM SMT 4POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 205885 pcs | Data sheet | DF58-xP-1.2V(21) DrawingDF58 Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 100VDC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Unshrouded | Series | DF58 |
| Row Spacing - Mating | - | Pitch - Mating | 0.047" (1.20mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | H125489CT | Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.095" (2.41mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Swing Lock | Detailed Description | Connector Header Surface Mount 4 position 0.047" (1.20mm) |
| Current Rating | - | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
