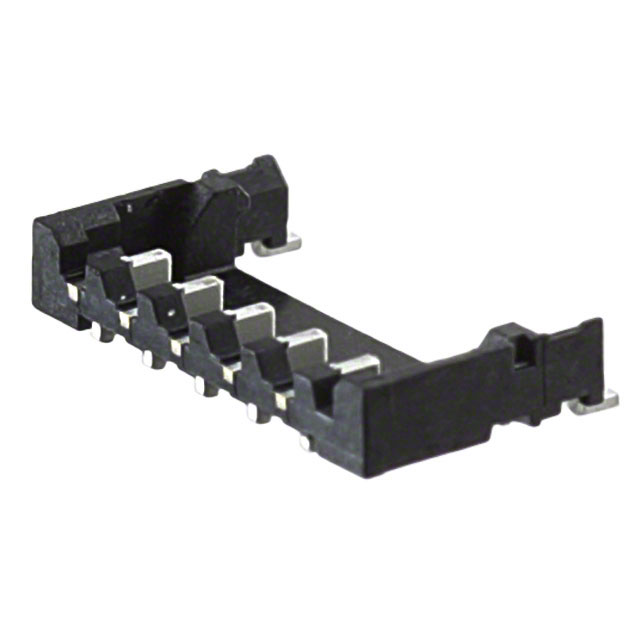

DF57H-5P-1.2V(21)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF57H-5P-1.2V(21) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF57H-5P-1.2V(21) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF57H-5P-1.2V(21) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 1.2MM 5POS SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | ||||
|---|---|---|---|---|---|
| $0.165 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF57H-5P-1.2V(21) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 1.2MM 5POS SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 117286 pcs | Data sheet | DF57H-5P-1.2V(21) DrawingDF57H-5P-1.2V(21) SpecDF57H Series DatasheetDF57 Insertion/Removal Instr |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Unshrouded | Series | DF57H |
| Row Spacing - Mating | - | Pitch - Mating | 0.047" (1.20mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | DF57H5P12V21 H12107TR |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.055" (1.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Swing Lock | Detailed Description | Connector Header Surface Mount 5 position 0.047" (1.20mm) |
| Current Rating | - | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
