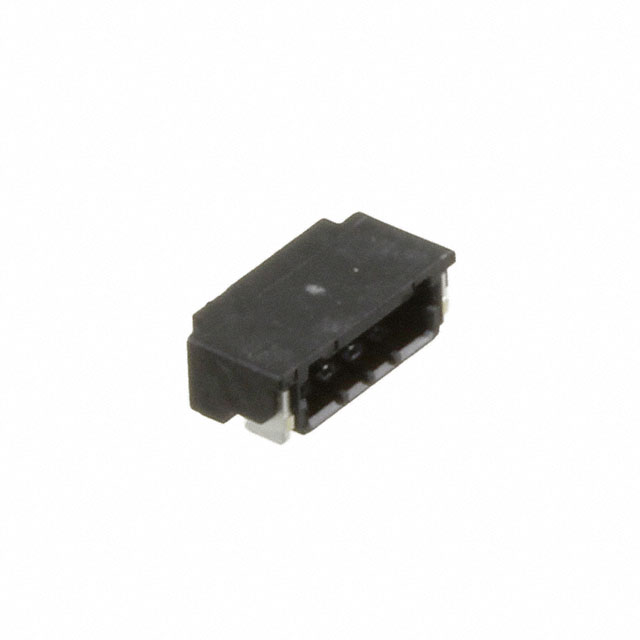

DF52-4S-0.8H(21)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF52-4S-0.8H(21) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF52-4S-0.8H(21) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF52-4S-0.8H(21) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN RCPT 0.8MM 4POS R/A PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | ||||
|---|---|---|---|---|---|
| $0.069 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF52-4S-0.8H(21) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RCPT 0.8MM 4POS R/A PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 347729 pcs | Data sheet | DF52 Series FlyerDF52 Series DatasheetDF52-xS-0.8H(21) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 100V |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | DF52 | Row Spacing - Mating | - |
| Pitch - Mating | 0.031" (0.80mm) | Packaging | Tape & Reel (TR) |
| Other Names | H125098TR | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Halogen Free |
| Insulation Height | 0.069" (1.75mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Glow Wire Compliant, Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | 4 Position Socket Connector 0.031" (0.80mm) Surface Mount, Right Angle Tin |
| Current Rating | 1.5A | Contact Type | Non-Gendered |
| Contact Shape | - | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Socket |
| Applications | - |
