DF52-15S-0.8H(21)

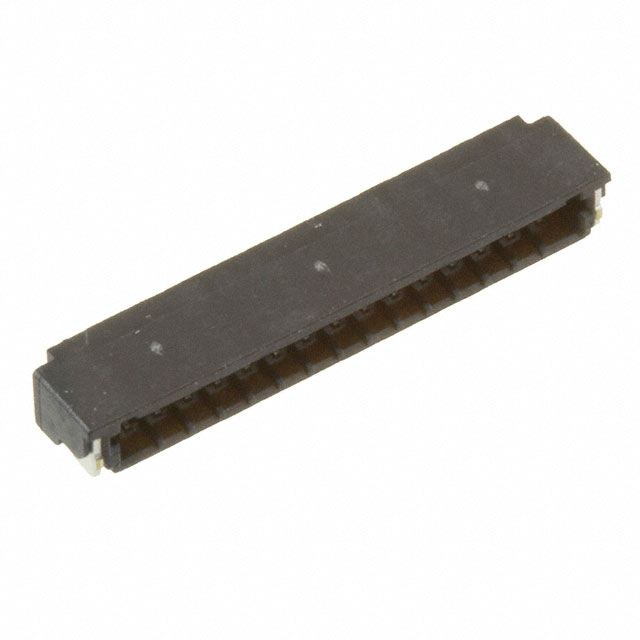

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF52-15S-0.8H(21) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF52-15S-0.8H(21) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF52-15S-0.8H(21) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN RCPT 0.8MM 15POS R/A PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.309 | $0.272 | $0.256 | $0.246 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.235 | $0.214 | $0.192 | $0.171 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF52-15S-0.8H(21) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RCPT 0.8MM 15POS R/A PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 140174 pcs | Data sheet | DF52 Series DatasheetDF52-xS-0.8H(21) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 100V |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | DF52 | Row Spacing - Mating | - |
| Pitch - Mating | 0.031" (0.80mm) | Packaging | Original-Reel® |
| Other Names | H125105DKR | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 15 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Halogen Free |
| Insulation Height | 0.069" (1.75mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Glow Wire Compliant, Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | 15 Position Socket Connector 0.031" (0.80mm) Surface Mount, Right Angle Tin |
| Current Rating | 1.5A | Contact Type | Non-Gendered |
| Contact Shape | - | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Socket |
| Applications | - |
