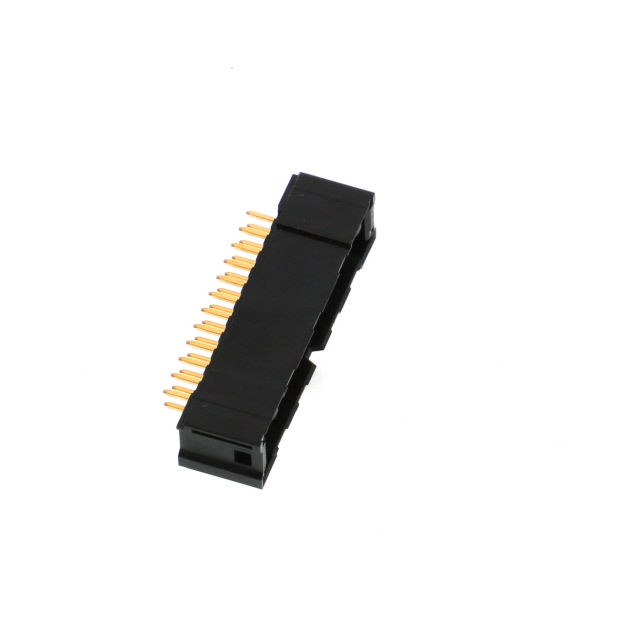

DF51A-24DP-2DSA(01)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF51A-24DP-2DSA(01) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF51A-24DP-2DSA(01) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF51A-24DP-2DSA(01) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HDR 24POS DUAL 2MM PCB STR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.677 | $0.615 | $0.527 | $0.439 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF51A-24DP-2DSA(01) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HDR 24POS DUAL 2MM PCB STR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73255 pcs | Data sheet | DF51 Series SpecDF51A-24DP-2DSA(01) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | SignalBee™ DF51 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | H125857 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.331" (8.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole 24 position 0.079" (2.00mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | General Purpose, Industrial, Medical |
