DF3Z-5P-2H(20)

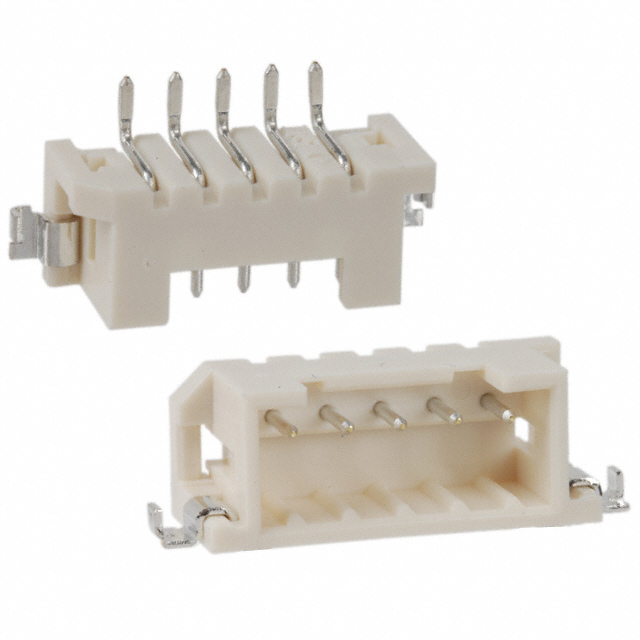

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF3Z-5P-2H(20) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF3Z-5P-2H(20) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF3Z-5P-2H(20) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 5POS 2MM RT ANG TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.27 | $0.237 | $0.214 | $0.204 | $0.186 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.167 | $0.146 | $0.132 | $0.127 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF3Z-5P-2H(20) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 5POS 2MM RT ANG TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 184225 pcs | Data sheet | DF3 Series DatasheetDF3Z-5P-2H(20) Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | DF3 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | *DF3Z-5P-2H(20) DF3Z5P2H20 HR2013 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.220" (5.60mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | Board Guide, Solder Retention | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount, Right Angle 5 position 0.079" (2.00mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
