DF3Z-3P-2H(50)

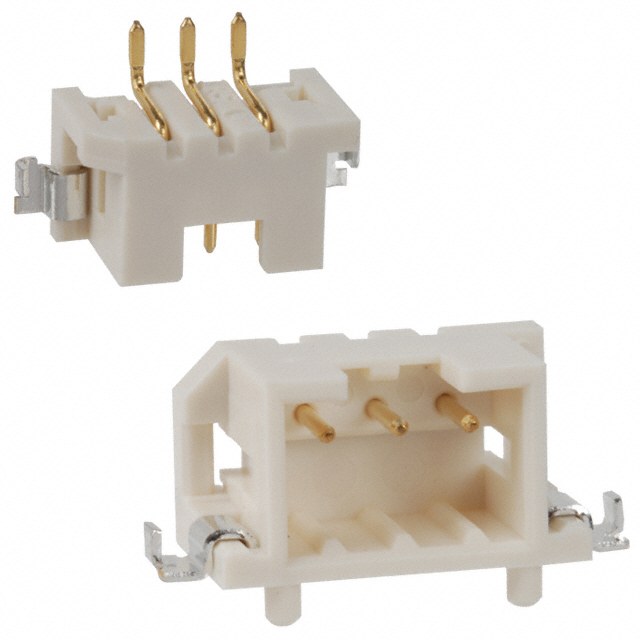

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF3Z-3P-2H(50) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF3Z-3P-2H(50) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF3Z-3P-2H(50) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 3POS 2MM R/A GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.714 | $0.647 | $0.581 | $0.554 | $0.501 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.462 | $0.396 | $0.369 | $0.351 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF3Z-3P-2H(50) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 3POS 2MM R/A GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 64953 pcs | Data sheet | DF3 Series DatasheetDF3Z-xP-2H(50) SpecDF3Z-xP-2H(50) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | DF3 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | *DF3Z-3P-2H(50) DF3Z3P2H50 HR2101 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.220" (5.60mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | Board Guide, Solder Retention | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount, Right Angle 3 position 0.079" (2.00mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
