DF3DZ-3P-2V(21)

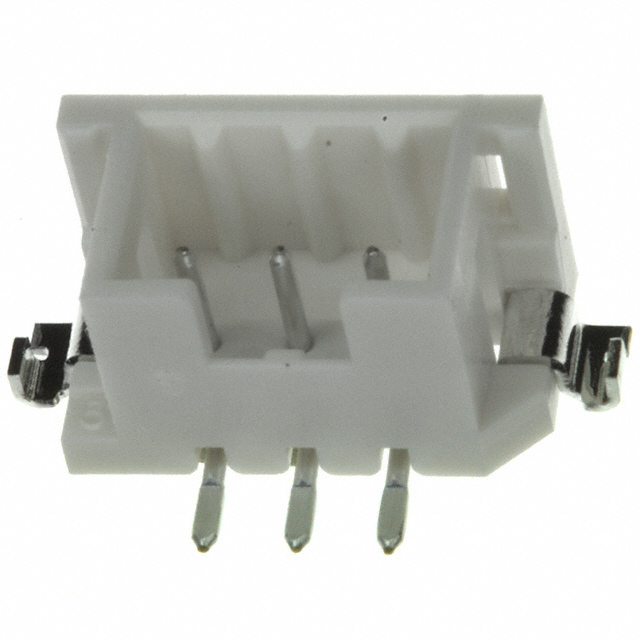

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF3DZ-3P-2V(21) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF3DZ-3P-2V(21) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF3DZ-3P-2V(21) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 3POS 2MM VERT TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 3000 pcs | ||
|---|---|---|---|---|---|
| $0.131 | $0.127 | $0.119 | |||
| 5000 pcs | 10000 pcs | 25000 pcs | |||
| $0.115 | $0.107 | $0.103 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF3DZ-3P-2V(21) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 3POS 2MM VERT TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 226625 pcs | Data sheet | DF3DZ-xP-2V(21) DrawingDF3 Series DatasheetDF3DZ-xP-2V(21) Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | DF3 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | DF3DZ3P2V21 HR1991TR |
Operating Temperature | -30°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.232" (5.90mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 3 position 0.079" (2.00mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
