DF3DZ-15P-2V(51)

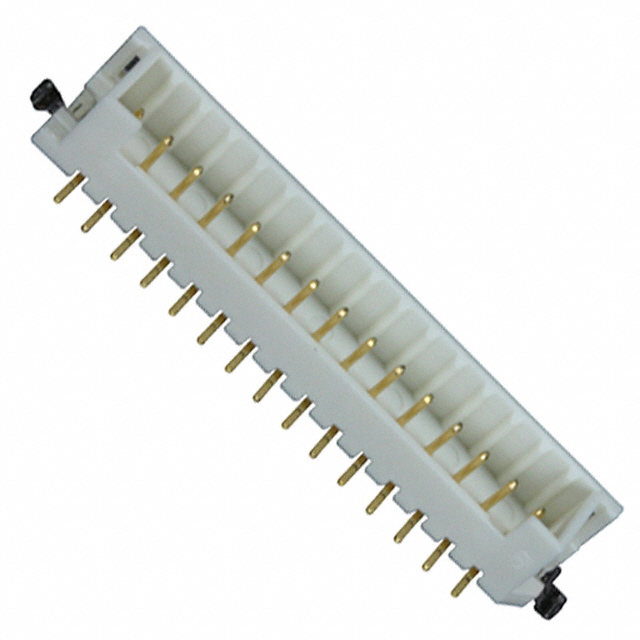

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF3DZ-15P-2V(51) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF3DZ-15P-2V(51) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF3DZ-15P-2V(51) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 15POS 2MM VERT GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.373 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF3DZ-15P-2V(51) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 15POS 2MM VERT GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 97257 pcs | Data sheet | DF3 Series DatasheetDF3DZ-xP-2V(51) SpecDF3DZ-xP-2V(51) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | DF3 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | DF3DZ15P2V51 HR1989TR |
Operating Temperature | -30°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 15 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.232" (5.90mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 15 position 0.079" (2.00mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
